OpenAPI
OpenAPI Git Integration
Integrating your Git repository with your mock API
WireMock Cloud offers the ability to synchronize your mock API’s OpenAPI spec with a Git repository.
This synchronization is bidirectional, allowing you to pull your spec from Git to WireMock Cloud, as well as push
updates from WireMock Cloud to Git.
This enables WireMock Cloud to be integrated into your workflows seamlessly.
Your stubs can be kept up to date without having to manually copy your specification into WireMock Cloud each time it is
updated, and you can prototype your OpenAPI specification in WireMock Cloud before pushing it to your code base.
The SSH public key for the key you selected will be displayed at the bottom of the configuration.
Add this key to your Git repository.
When you navigate to the Document tab of the OpenAPI page, there will be buttons for performing Git operations on your
OpenAPI document.
Clicking the Pull button will retrieve the contents of the file at the configured path in your Git repository and save
it in WireMock Cloud.
The document will be validated and stubs generated like normal.
The pulled document will appear in the document text area.
Note, this will not immediately overwrite any local changes you have made to the specification (see
Git conflicts for details).
Clicking the Push button in the Document tab of the OpenAPI page will push your currently saved OpenAPI document on
WireMock Cloud to the configured Git repository.
If the file does not exist on the configured branch of the Git repository, then it will be created by this action.
If you wish to push to your Git repository, ensure that write access is granted to the SSH key when you add it to your
repository, if required by the platform (e.g. GitHub).
With the Git integration enabled, changes can still be saved to WireMock Cloud’s copy of the OpenAPI document
independently of the configured Git repository.
WireMock Cloud and your Git repository are only synchronized when the document is pulled or pushed.
Make sure to allow the key write access if you want to push to the repository from WireMock Cloud.
Bitbucket’s access keys are limited to read-only access to a repository.
This means pushing from WireMock Cloud is not possible when using access keys.
If write access is required, the key can be added to a user’s personal SSH keys.
This will allow the key write access to all repositories that the user has access to.
Therefore, it may be advisable to create a specific user for WireMock Cloud in your Bitbucket organisation that only has
access to the desired repository.
Configuring your Git integration

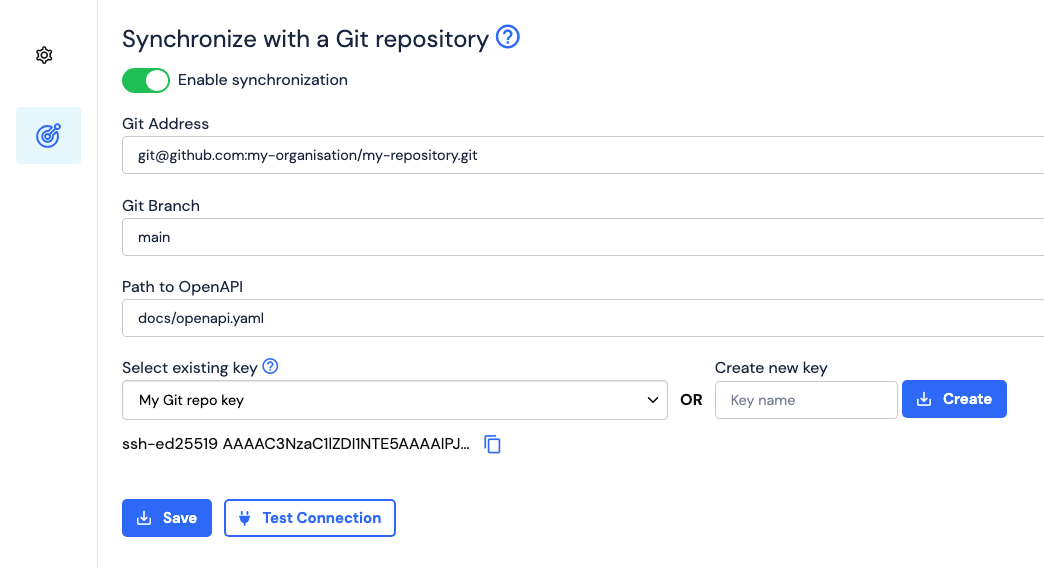

To configure your mock API to synchronize its OpenAPI document with a Git repository, navigate to the Settings tab of the OpenAPI page. Toggle “Enable synchronization” in the Git repository settings section. Fill in the fields with the appropriate Git configuration data, including the SSH address of your Git repository and the path to the OpenAPI file within the repository. The key that WireMock Cloud will use to authenticate calls to your Git repository must also be configured here. You can either select an existing key or create a new one. You can learn more about keys in WireMock Cloud here. Once you have entered the relevant Git repository configuration, save your changes.
The SSH public key for the key you selected will be displayed at the bottom of the configuration.
Add this key to your Git repository.

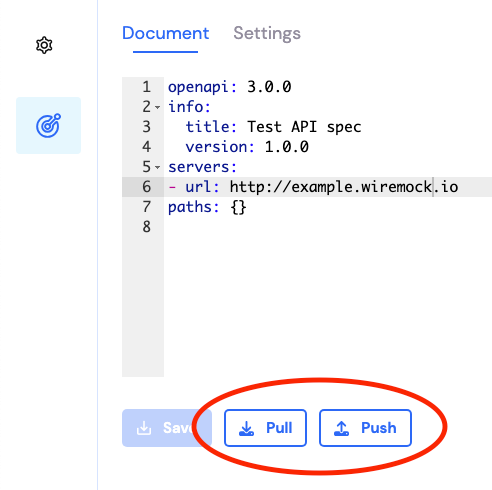

When you navigate to the Document tab of the OpenAPI page, there will be buttons for performing Git operations on your
OpenAPI document.
Clicking the Pull button will retrieve the contents of the file at the configured path in your Git repository and save
it in WireMock Cloud.
The document will be validated and stubs generated like normal.
The pulled document will appear in the document text area.
Note, this will not immediately overwrite any local changes you have made to the specification (see
Git conflicts for details).
Clicking the Push button in the Document tab of the OpenAPI page will push your currently saved OpenAPI document on
WireMock Cloud to the configured Git repository.
If the file does not exist on the configured branch of the Git repository, then it will be created by this action.
If you wish to push to your Git repository, ensure that write access is granted to the SSH key when you add it to your
repository, if required by the platform (e.g. GitHub).
With the Git integration enabled, changes can still be saved to WireMock Cloud’s copy of the OpenAPI document
independently of the configured Git repository.
WireMock Cloud and your Git repository are only synchronized when the document is pulled or pushed.
Handling Git Conflicts
There are circumstances where performing a pull or push will cause conflicts with your mock API’s copy of your OpenAPI specification. This can occur when a pull is attempted after changes have been applied to your mock API’s copy of the specification that have yet to be pushed to your repository, or when pushing after changes have been made to the file in the repository since the last time it was pulled into WireMock. In these cases, attempting a pull or push will display a dialog explaining that your mock API is out of sync with the repository and ask if you wish to overwrite the document on WireMock (when pulling) or the document in the repository (when pushing). If this dialog is cancelled, no changes will occur in WireMock or your repository. If you are receiving these conflict messages and are unsure of what action to perform, WireMock recommends performing an overwriting push to the repository, rather than an overwriting pull to your mock API, and resolving any issues using external Git tooling. This ensures that no data is lost, since all changes will be logged in version control.Testing Connections to Your Git Repository
If you want to test that your Git configuration is correct before attempting a pull or push (or even saving the configuration), you can use the “Test Connection” button on the settings page. Simply fill in the configuration fields and press the button. If WireMock Cloud is able to connect to your Git repository, then a success will be displayed. Otherwise, a message will be displayed explaining what went wrong.Adding SSH Keys to Your Git Repository
In order for WireMock Cloud to be able to communicate with your Git repository, you must add the SSH public key displayed in your mock API’s OpenAPI settings to the repository. The process for adding the public key to your Git repository depends on the method you are using to host your Git repository. Below are instructions for adding keys to your repository on popular hosting platforms. These instructions are up-to-date as of writing, but are subject to changes outside WireMock’s control.GitHub

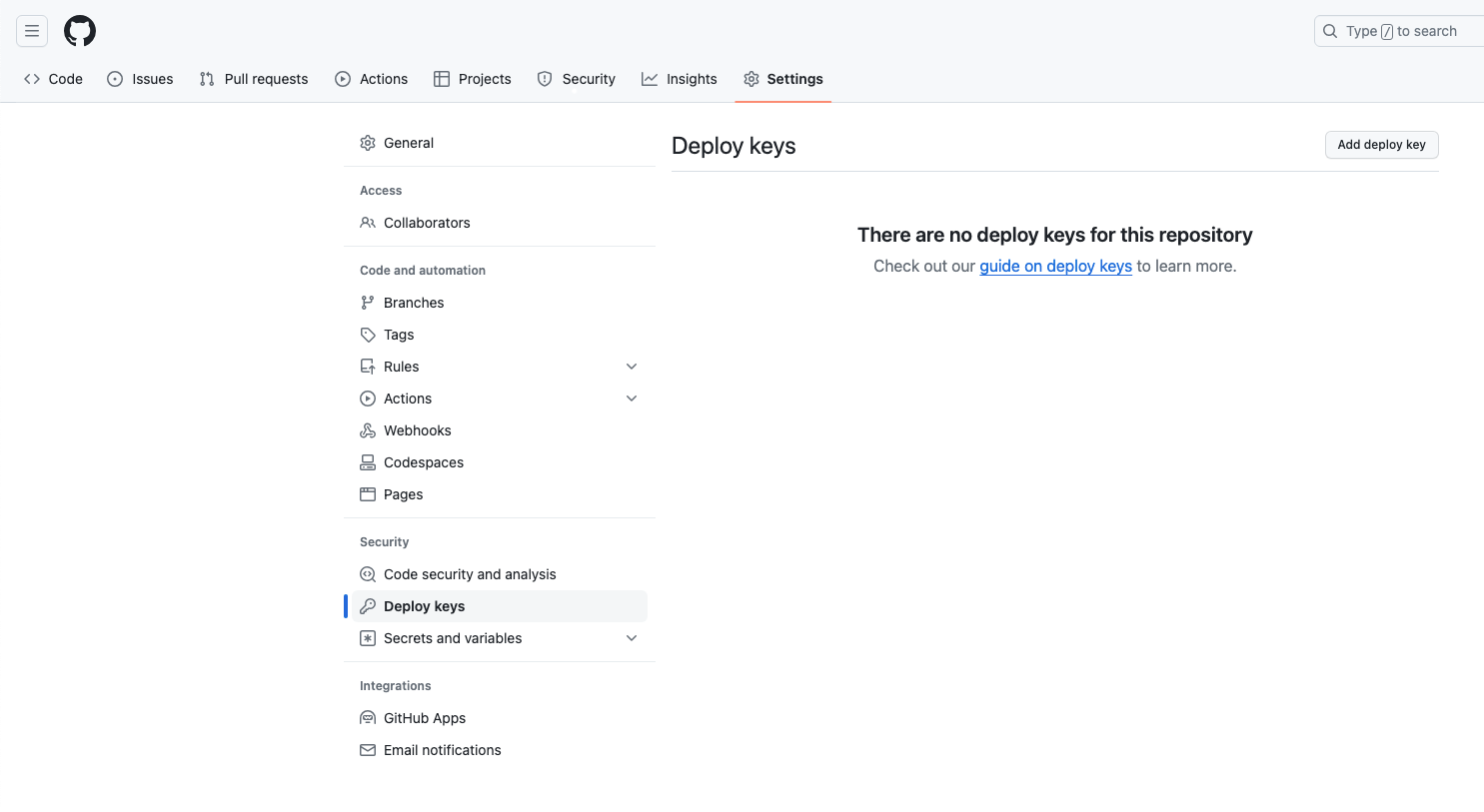

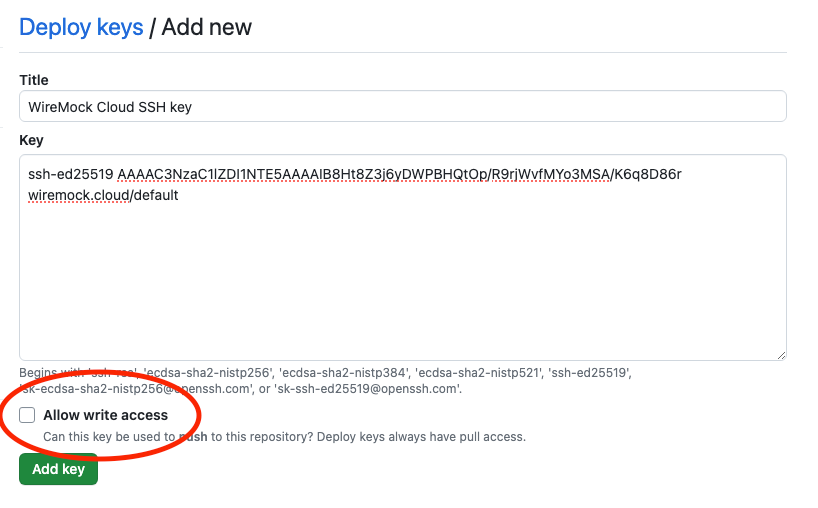

If you are hosting a repository on GitHub, you can add the key to your repository via the “Deploy keys” page of the repository settings tab.
Make sure to allow the key write access if you want to push to the repository from WireMock Cloud.
Bitbucket

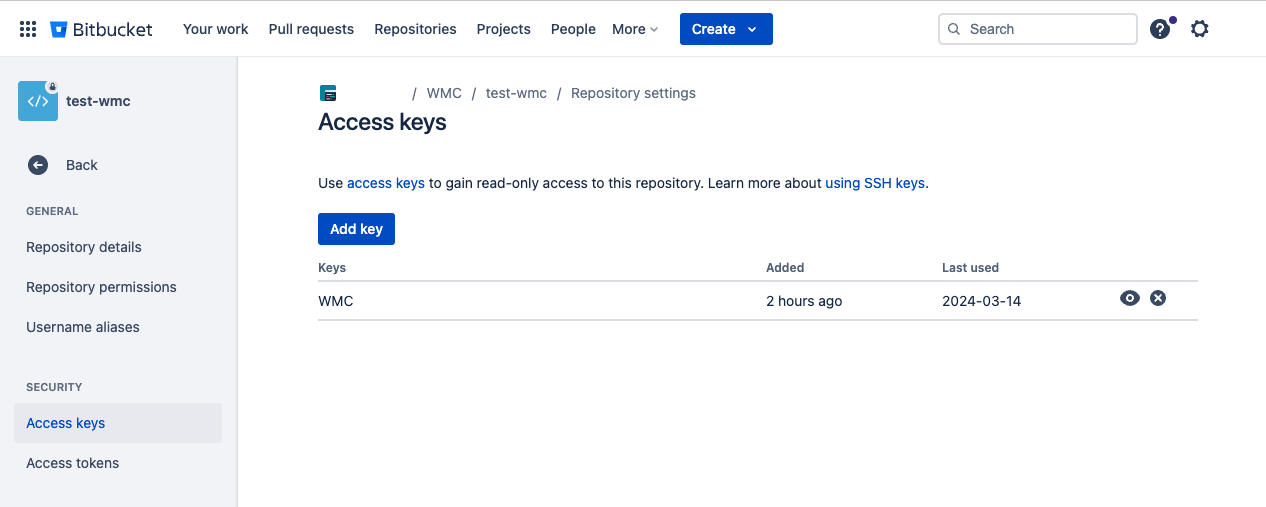

If you are hosting a repository on Bitbucket, you can add the key to your repository via the repository’s “Access keys” page.
Bitbucket’s access keys are limited to read-only access to a repository.
This means pushing from WireMock Cloud is not possible when using access keys.

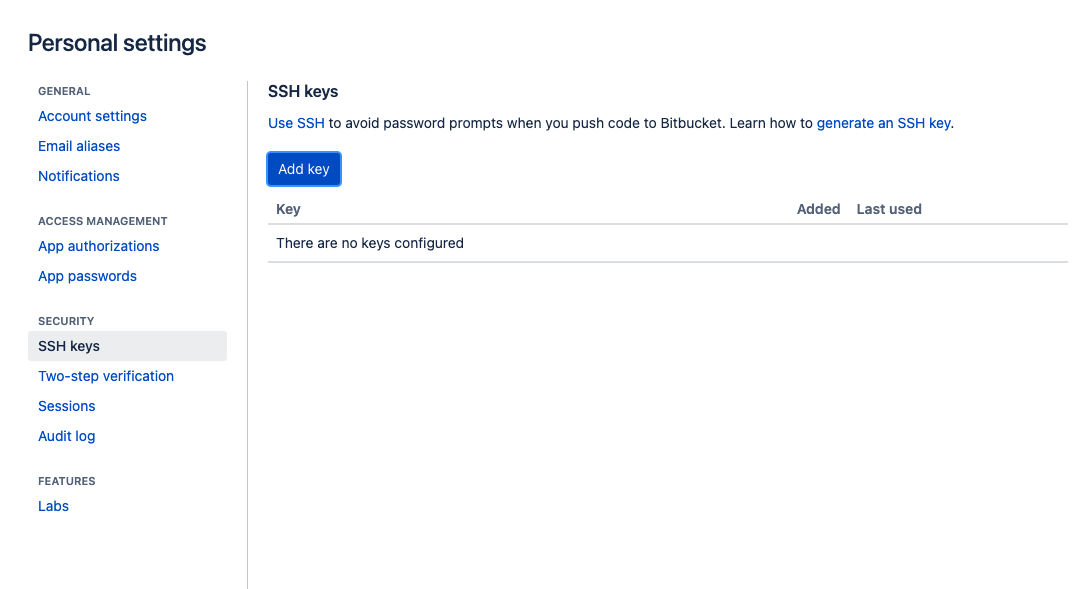

If write access is required, the key can be added to a user’s personal SSH keys.
This will allow the key write access to all repositories that the user has access to.
Therefore, it may be advisable to create a specific user for WireMock Cloud in your Bitbucket organisation that only has
access to the desired repository.

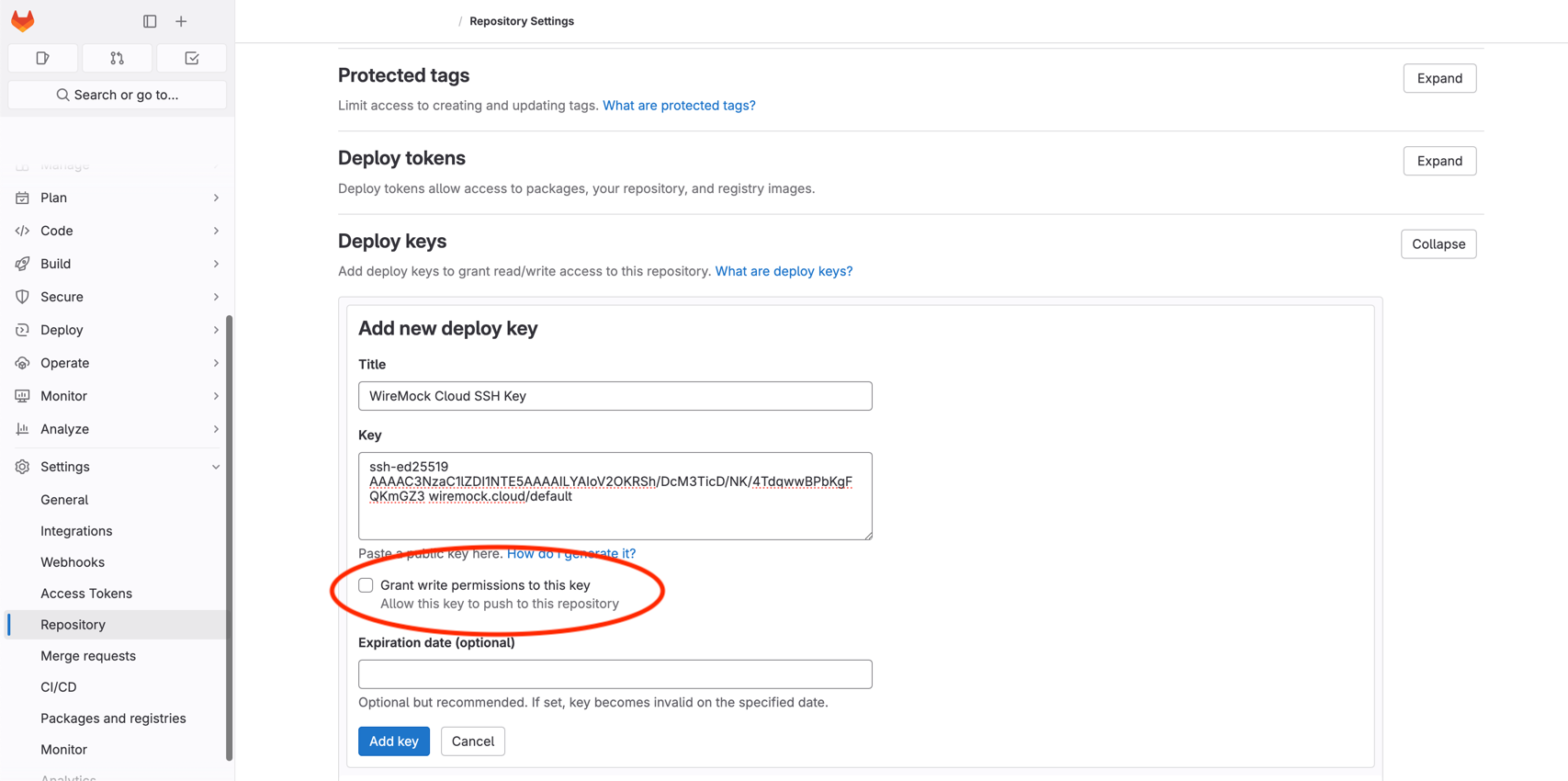

Gitlab
If you are hosting a repository on Gitlab, you can add the key to your repository via the repository’s “Deploy keys” section of the repository settings page. Make sure to grant the key write permissions if you want to push to the repository from WireMock Cloud.
Self-Hosted Server
If you are hosting a repository on a server that you maintain, adding the key to your repository will generally involve adding it to the Git user’s.ssh/authorized_keys file.
For example, if your Git repository address is git-user@my-git-server.com:path/to/repository.git, you will likely have
to append the key to the contents of /home/git-user/.ssh/authorized_keys on the server that my-git-server.com
addresses.
Approaches may vary, so it is best to consult your system administrator.
For security purposes, WireMock recommends creating a specific user for WireMock Cloud on your server with read
permission on the Git repository directory only (and write permission if pushing from WireMock Cloud is desired).
