REST is the dominant style of API at present and it’s common for web, mobile and microservice developers to have to integrate with at least a few and sometimes many REST APIs to the the job done.

Inevitably this means that teams are delayed shipping new features when APIs aren’t finished, sandbox environments are down or test scenarios can’t be run, so being able to quickly deploy a mock API is essential to keep things moving.

In this tutorial you’ll build a mock REST API from a fictitious contact manager, which is suitable for integration, functional and performance testing. You’ll also implement common REST patterns and see how to solve common problems.

​
Prerequisites

In order to follow this tutorial you’ll need:

  • A basic working knowledge of HTTP and REST
  • An HTTP client for testing, such as Postman or Insomnia
  • Basic familiarity with Regular Expressions
  • Ideally, some familiarity with JSONPath, but this is not esssential as it’ll be explained in the places it’s used.

​
Setting up

Firstly, you’ll need to sign up for a WireMock Cloud account if you don’t already have one.

Once you’ve signed up or logged back in, create a blank mock API in the app.

tl;dr

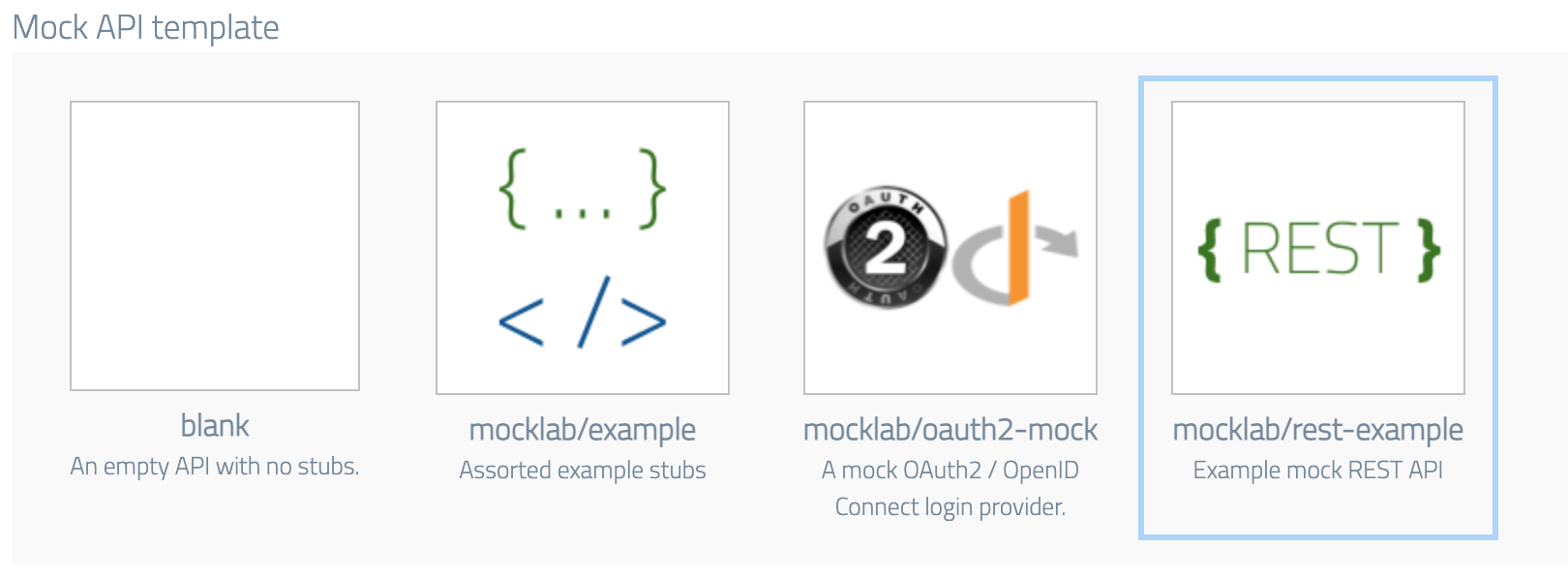

If you just want to take a look at the end result of this tutorial you can select the “rest-example” API template instead of “blank” when when creating a new mock API.

After creating a new mock API you’ll be taken to the Settings page where you can find its base URLs (one for HTTP one for HTTPS):

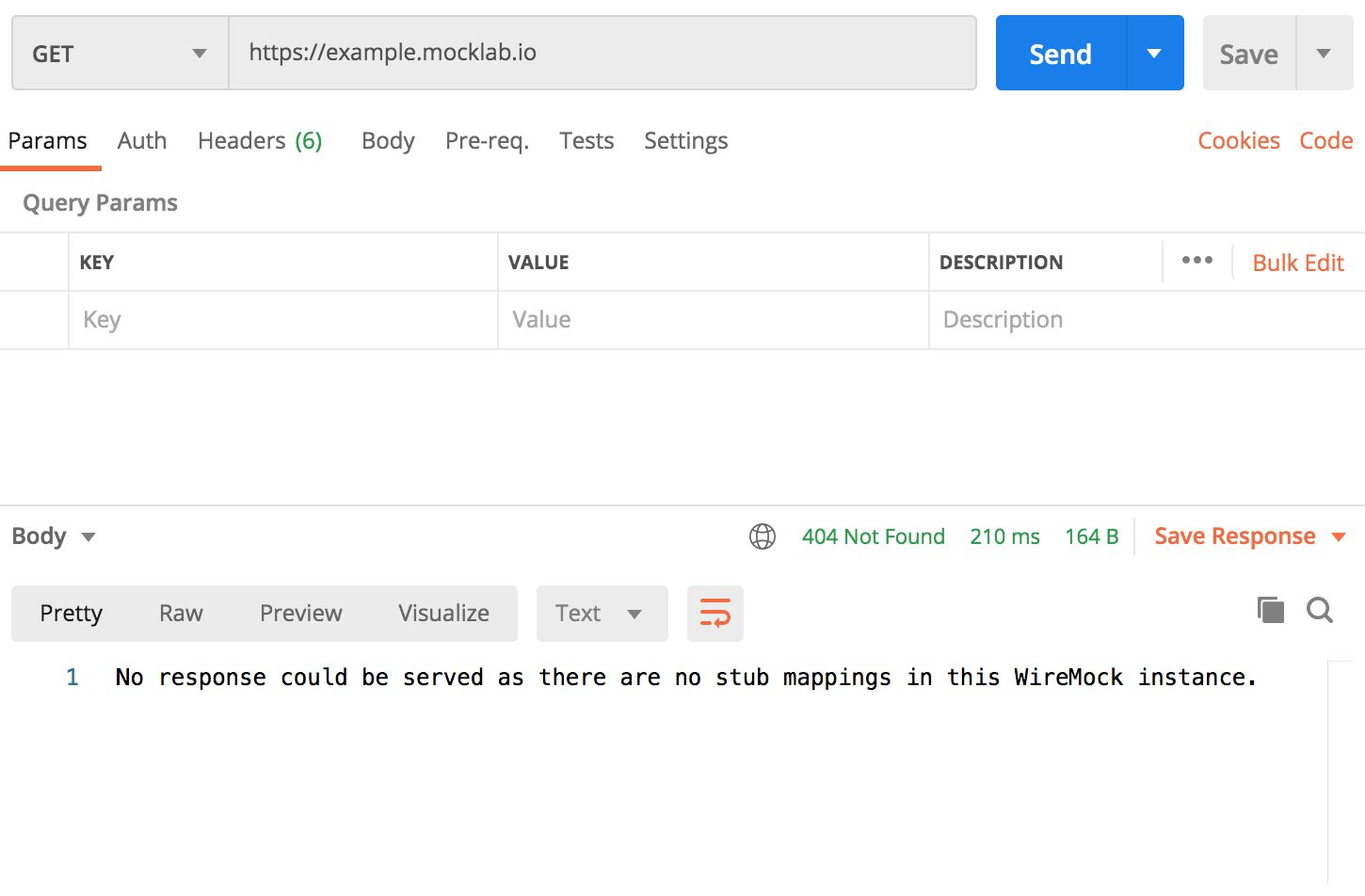

You can check that your new API is live by copying the base URL by clicking the icon to the right of the box and making a request from your HTTP client (e.g. Postman):

​
Basic contact list

A contact manager application is likely to have the ability to list all stored contacts. Let’s assume our imaginary API responds to GET /v1/contacts with JSON like:

{
  "contacts": [
    {
      "id": "11111",
      "firstName": "Tom",
      "lastName": "Smith",
      "email": "tom.smith@example.com",
      "dateAdded": "2021-01-03",
      "companyId": "123"
    },
    {
      "id": "22222",
      "firstName": "Suki",
      "lastName": "Patel",
      "email": "spatel@example.com",
      "dateAdded": "2020-11-12",
      "companyId": "123"
    },
    {
      "id": "33333",
      "firstName": "Lexine",
      "lastName": "Barnfield",
      "email": "barnfield8@example.com",
      "dateAdded": "2021-01-03",
      "companyId": "234"
    }
  ]
}

We can simulate this by creating a basic stub, matched on a GET with the exact URL path /v1/contacts. Go to the Stubs page under your new mock API and hit the new stub button: Create new stub.

Then in the request section, set the method to GET, the URL to /v1/contacts and the URL match type to Path:

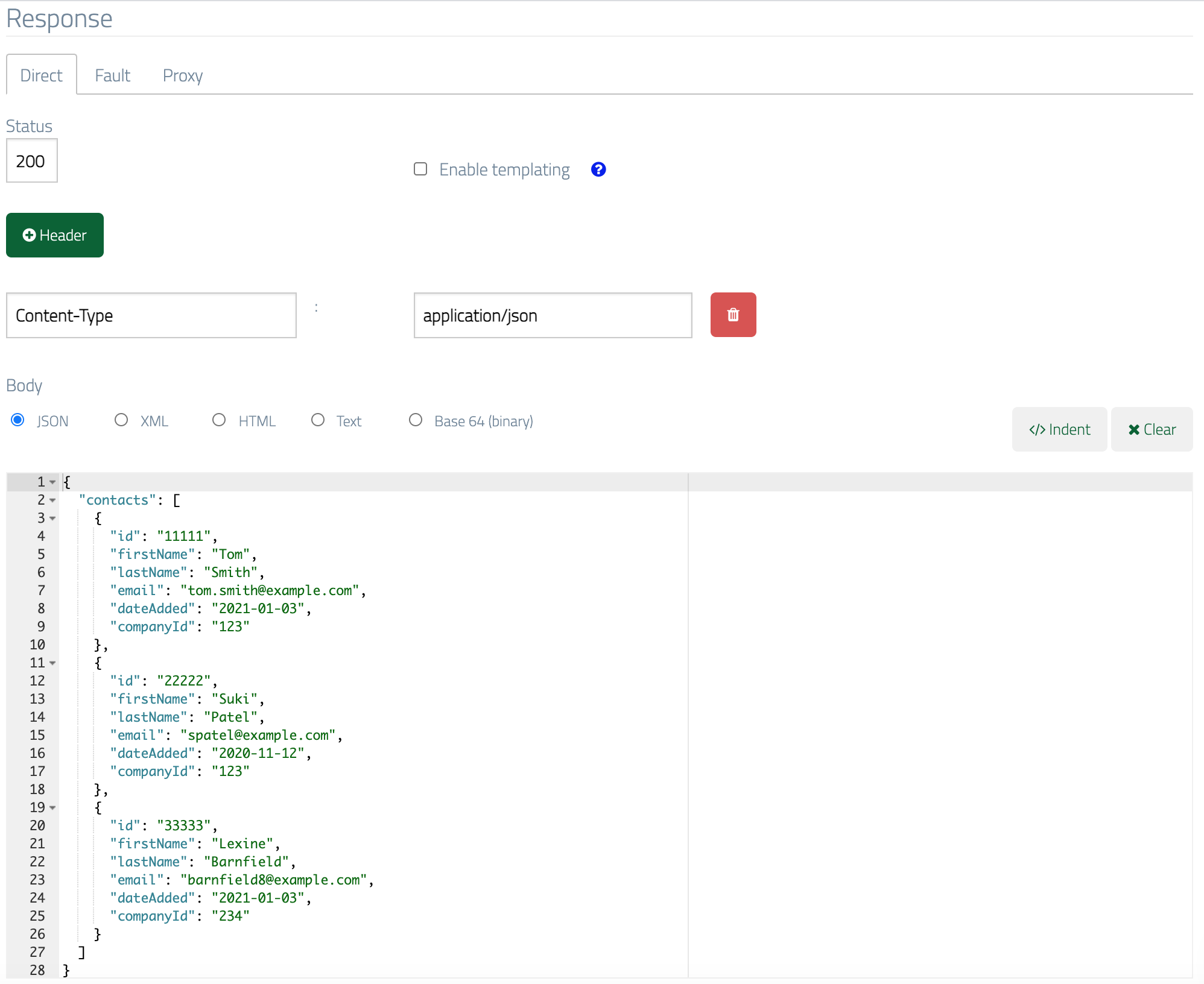

In the response section put the JSON in the body field, and for good measure we’ll also send a Content-Type: application/json header:

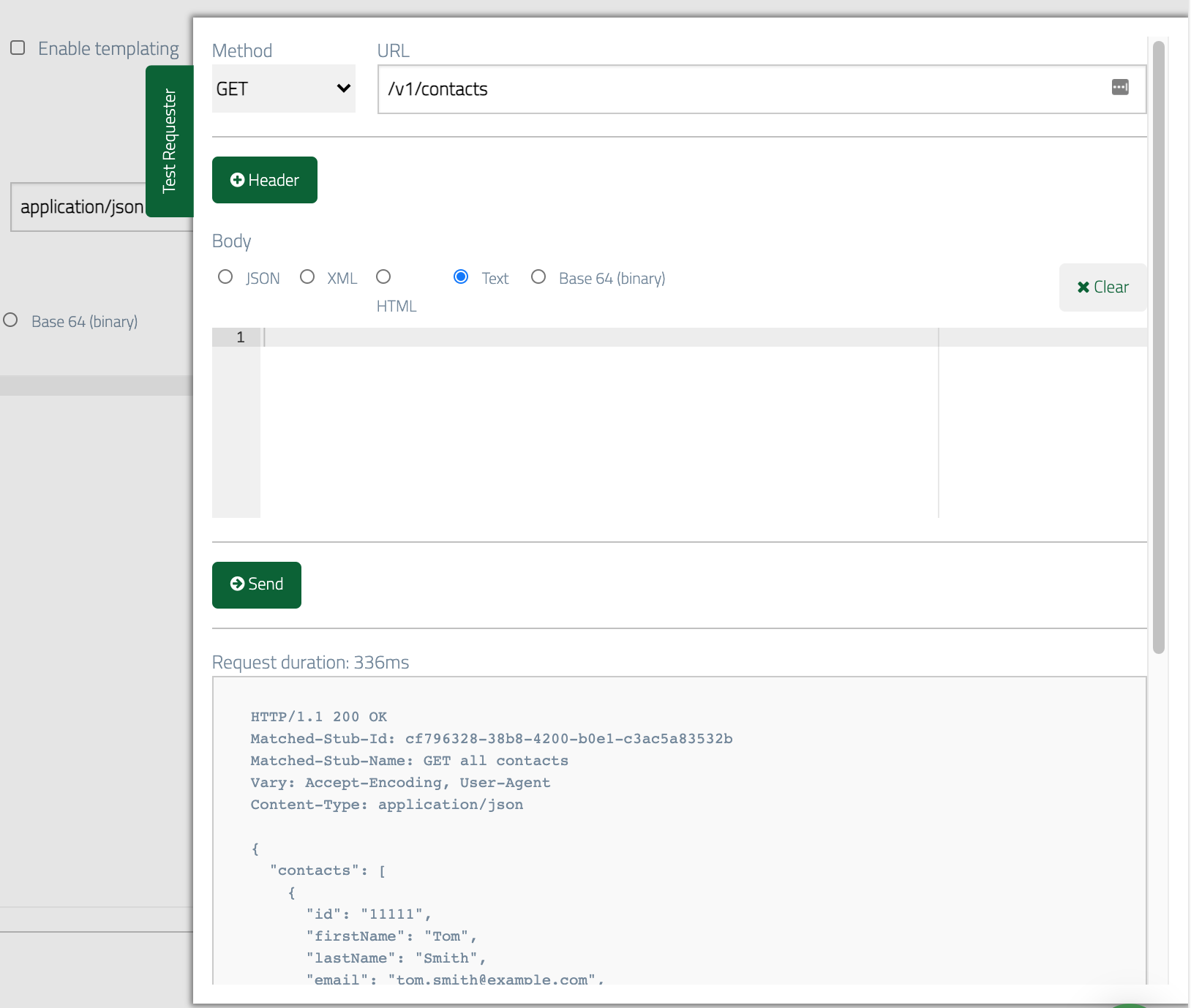

After hitting Save, you can now test the stub using WireMock Cloud’s Test Requester or your preferred HTTP client:

​
Filtering via query parameters

REST APIs often allow collection resources like the contact list to be filtered using parameters in the request’s query string.

For instance, so that we can find contacts for a specific company our contact manager might support filtering by company ID. For instance /v1/contacts?companyId=123 would return:

{
  "contacts": [
    {
      "id": "11111",
      "firstName": "Tom",
      "lastName": "Smith",
      "email": "tom.smith@example.com",
      "dateAdded": "2021-01-03",
      "companyId": "123"
    },
    {
      "id": "22222",
      "firstName": "Suki",
      "lastName": "Patel",
      "email": "spatel@example.com",
      "dateAdded": "2020-11-12",
      "companyId": "123"
    }
  ]
}

We’ll simulate this by creating a similar stub to the first one, but with a query parameter match and the filtered JSON document in the response body. To save some time we can clone the first stub rather than starting from scratch, which can be done by clicking Clone Stub at the bottom of the stub form.

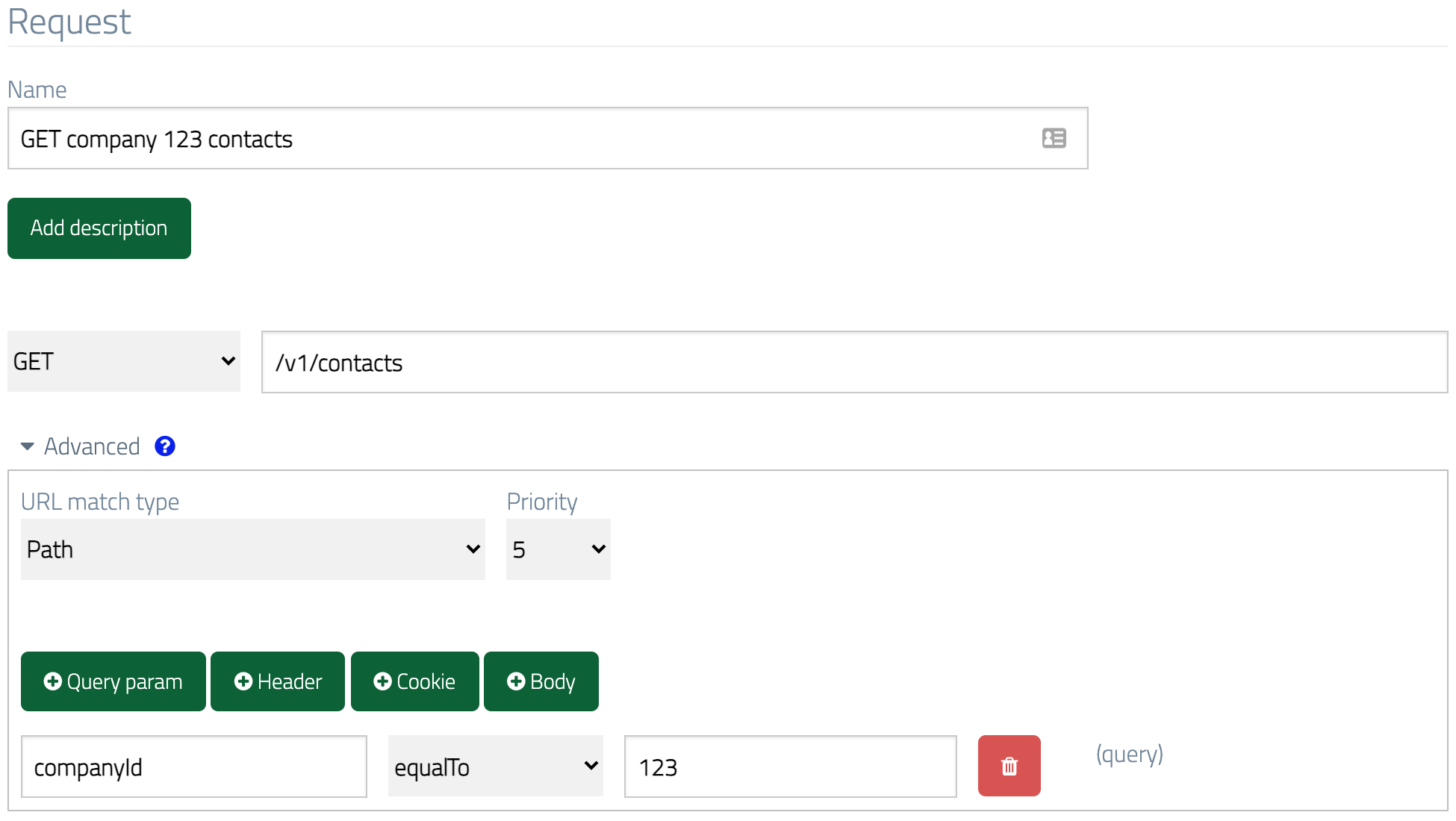

Then we add a query parameter match for companyId equalling 123:

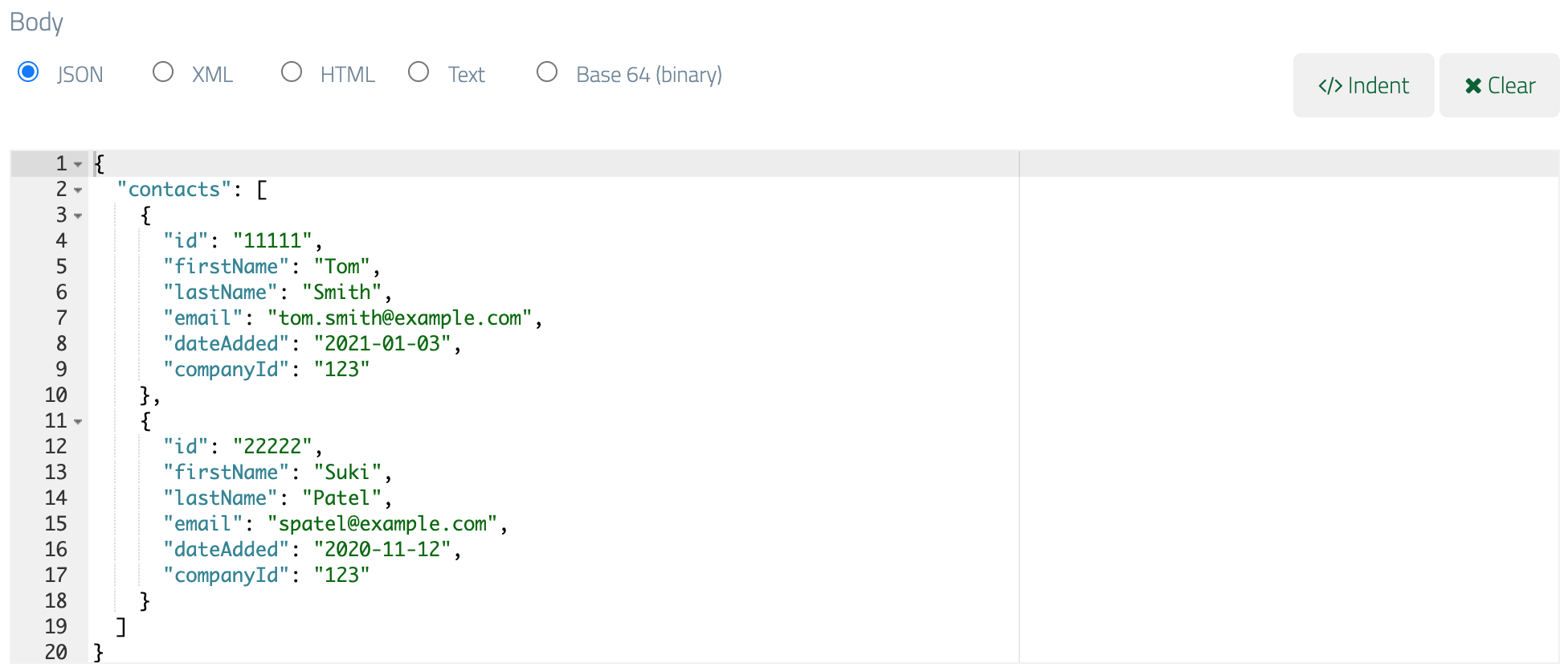

And finally paste the filtered JSON in the body field:

You can find more detail on matching different parts of incoming requests here.

See here for the full list of available request matchers (such as equalTo and contains).

​
Getting an individual contact

It’s also very common for REST APIs to support retrieval of individual items of data specified by an identifier in the URL path, so in our case we might fetch an individual contact via a GET to /v1/contacts/22222.

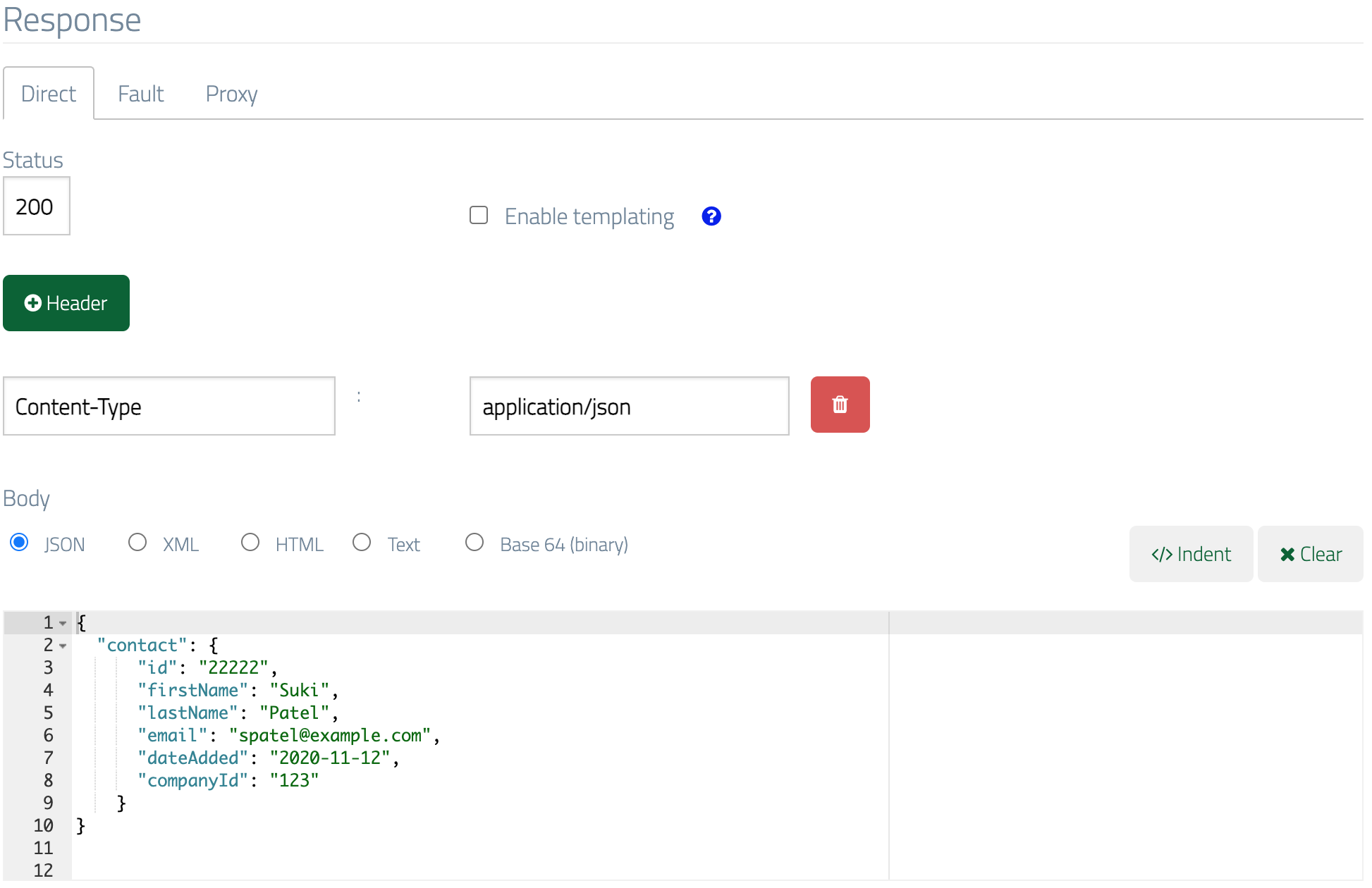

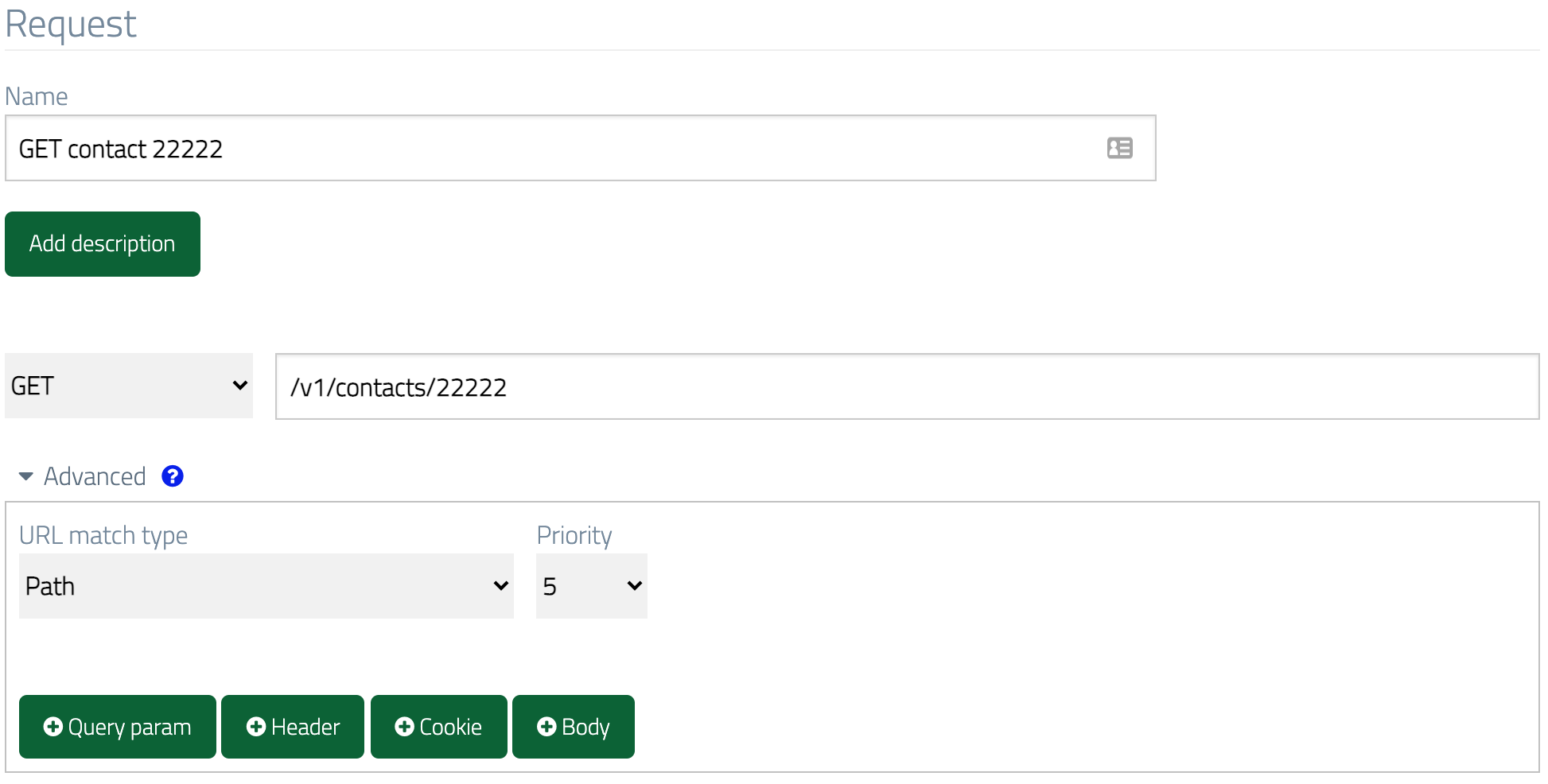

We can stub a single data item in a very similar manner to the contact list we created first, relying on exact URL path equality to match the request:

​
Using URL regex matching and response templating to simulate many data records

If you only need to be able to return a small number of individual contacts then the above approach of creating a stub per contact will work OK.

However, you may need return many unique contact records e.g. because you’re performance testing and want to spread the load across realistic data volumes. In this instance you can use URL regex matching and response templating to simulate the presence of many data items.

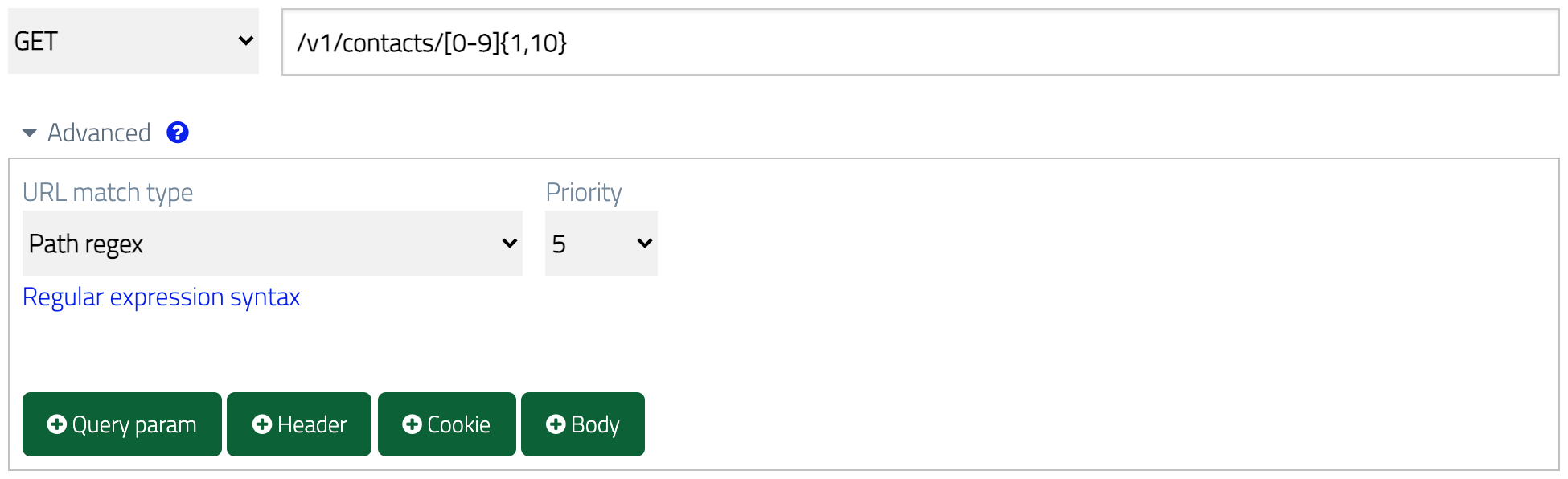

Let’s modify the single contact stub we’ve already created. First we’ll switch to a looser URL match using the Path regex URL match type with the regular expression /v1/contacts/[0-9]{1,10} as the value. This will match any URL path starting with /v1/contacts and ending with any numeric ID between 1 and 10 characters long:

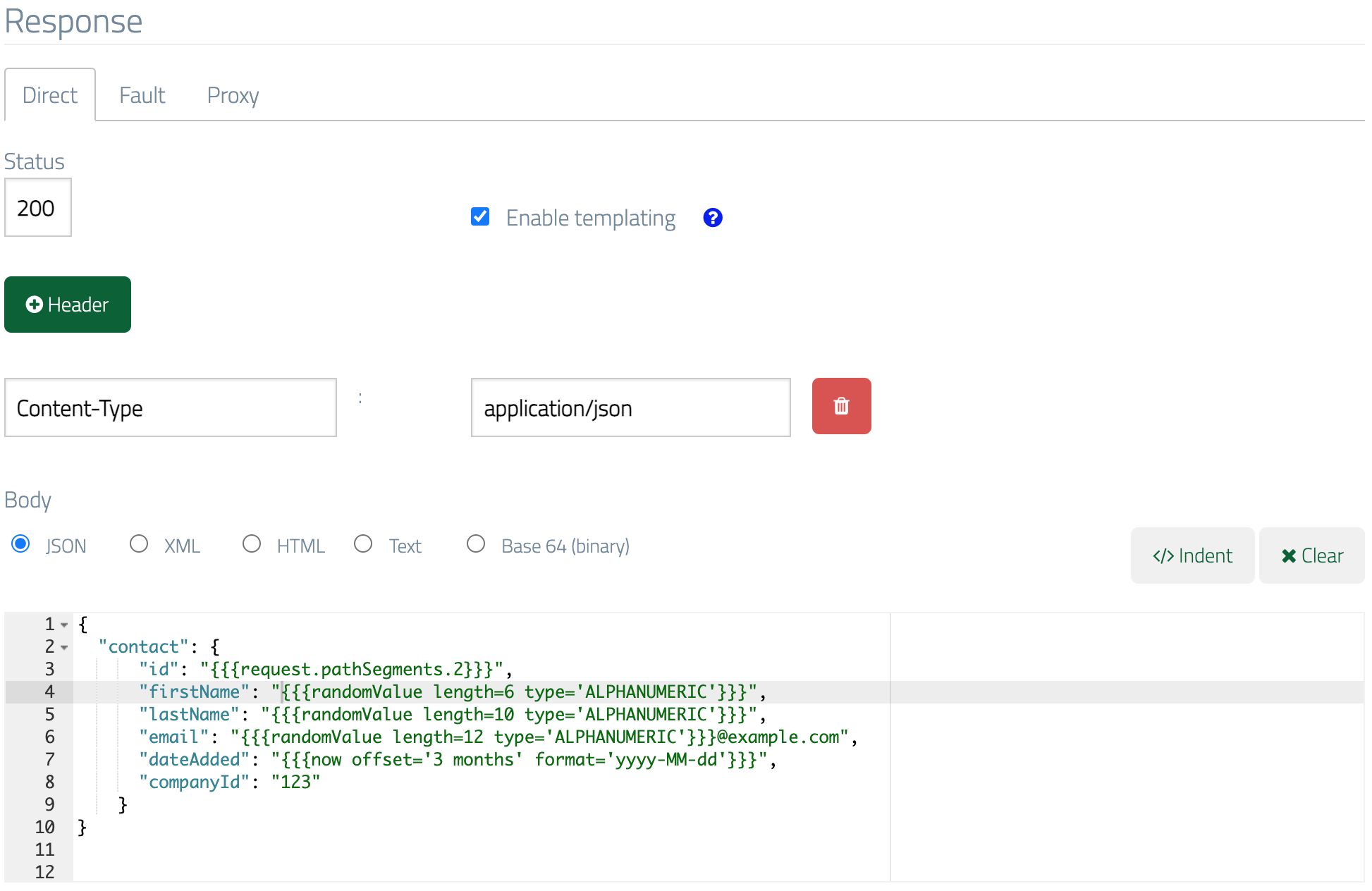

Then we’ll enable templating in the response by ticking “Enable templating” and make the response body more dynamic by replacing some elements with template helpers, giving us:

{
  "contact": {
      "id": "{{{request.pathSegments.2}}}",
      "firstName": "{{{randomValue length=6 type='ALPHANUMERIC'}}}",
      "lastName": "{{{randomValue length=10 type='ALPHANUMERIC'}}}",
      "email": "{{{randomValue length=12 type='ALPHANUMERIC'}}}@example.com",
      "dateAdded": "{{{now offset='-3 months' format='yyyy-MM-dd'}}}",
      "companyId": "123"
    }
}

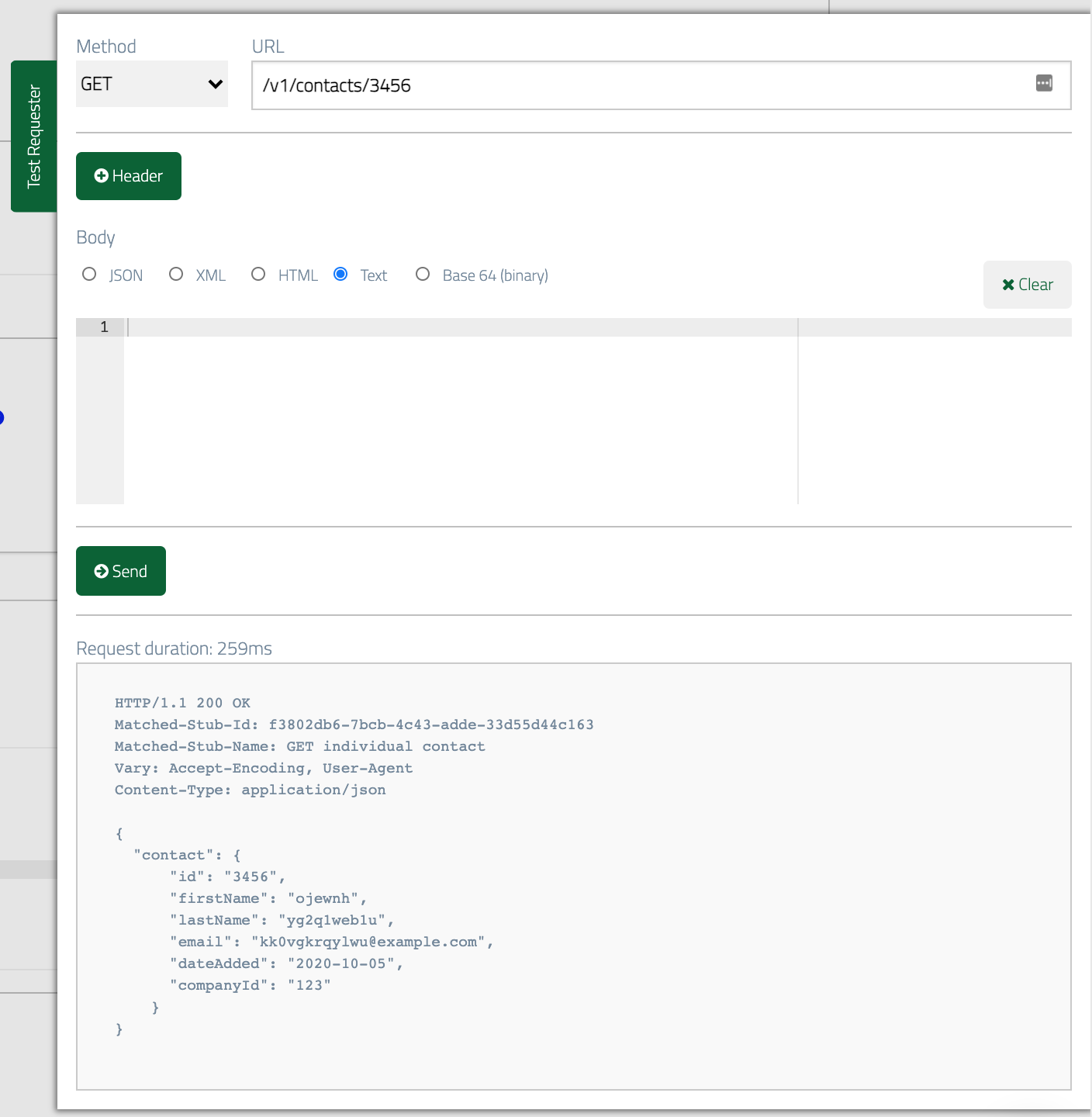

Now we can make a test request with any valid ID value (numeric, 1-10 characters) and will receive a response with the ID field matching the value in the request URL and some of the data randomised:

Unpacking what we’ve done here:

  • id is now set from the 3rd segment of the incoming request URL’s path, so it will always be the same as the requested contact ID.
  • firstName, lastName and email are now random alphanumeric text (with a fixed domain name in the case of email).
  • dateAdded is set to 3 months before today’s date.

You can learn more about response templating here and more about URL matching here.

​
Creating a new contact

At some point our contact manager API will need to be able to accept new contacts in addition to just returning them. Commonly, REST APIs support sending a POST request to the URL for a collection resource as a means to add new data items.

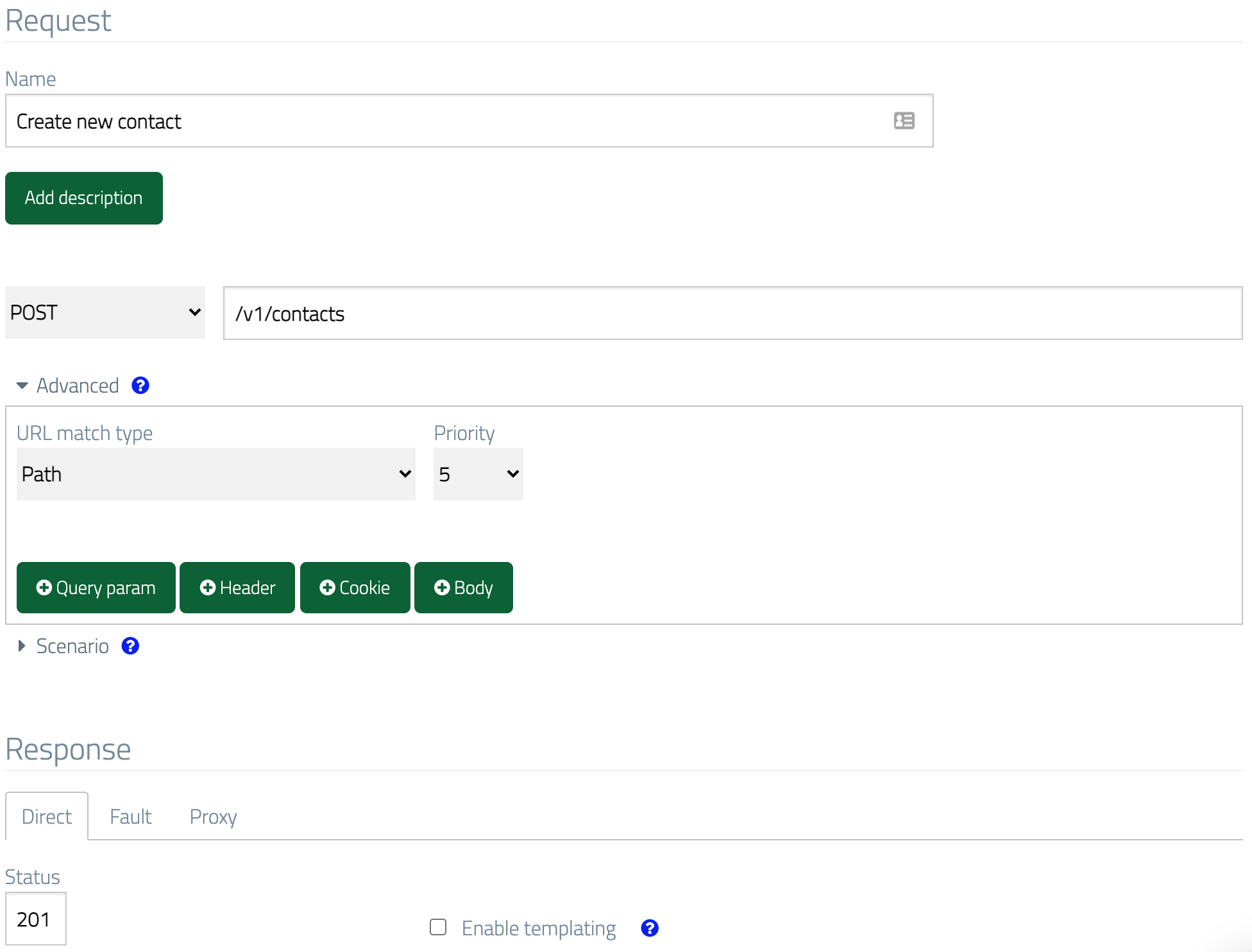

So our contact manager might accept POST /v1/contacts, returning a response with status code 201 Created and an empty body:

​
More specific matching

In its current state, this stub will be matched regardless of the contents of the request body, so a body with incorrectly structured JSON, XML or even no body at all will still yield the 201 response.

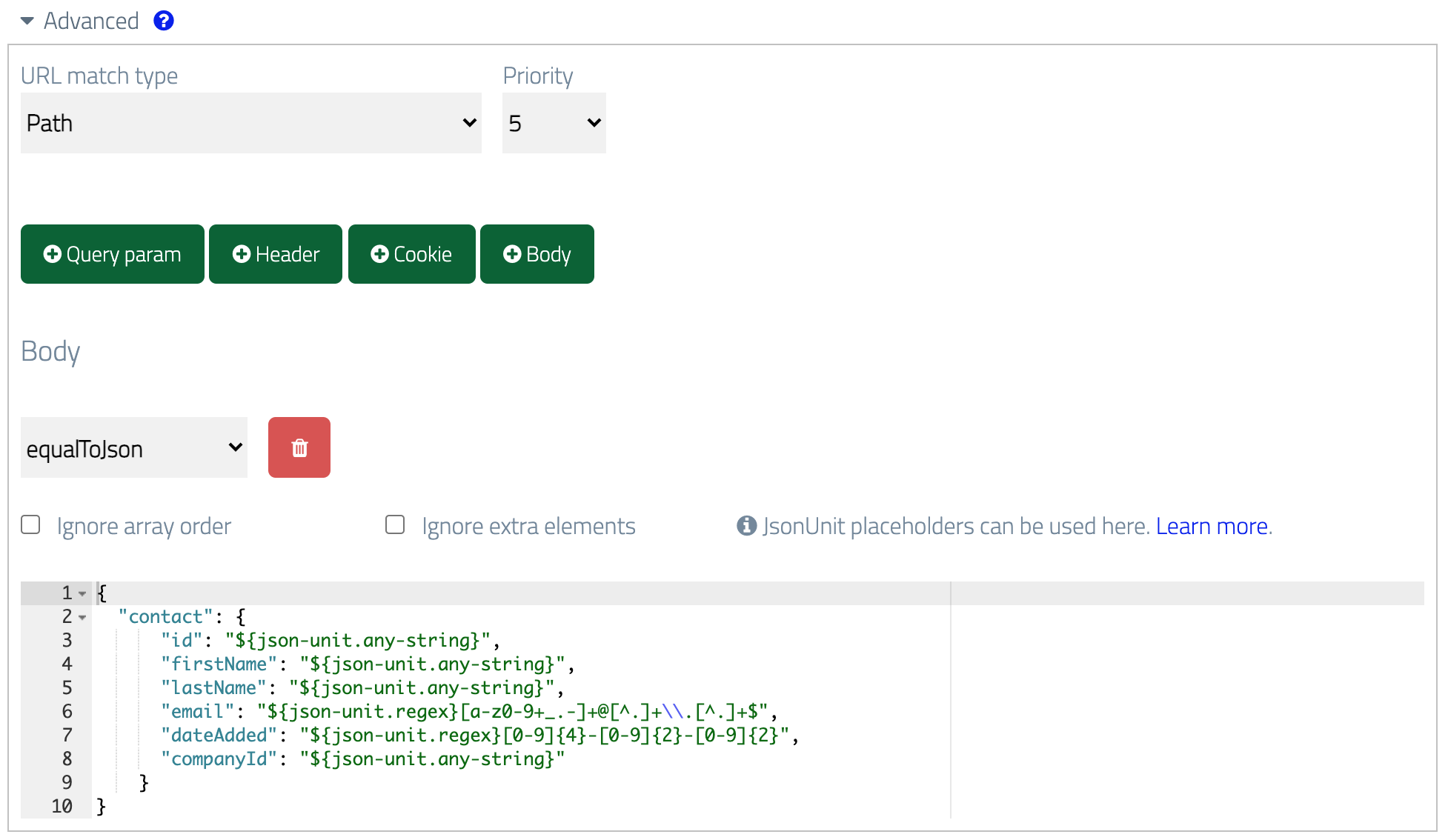

If we want to ensure the stub is only matched when correctly structured JSON is sent in the request but without requiring a set of exact values, we can add a body matcher by clicking New body matcher and using JSONUnit as wildcards:

{
  "contact": {
      "id": "${json-unit.any-string}",
      "firstName": "${json-unit.any-string}",
      "lastName": "${json-unit.any-string}",
      "email": "${json-unit.regex}[a-z0-9+_.-]+@[^.]+\\.[^.]+$",
      "dateAdded": "${json-unit.regex}[0-9]{4}-[0-9]{2}-[0-9]{2}",
      "companyId": "${json-unit.any-string}"
    }
}

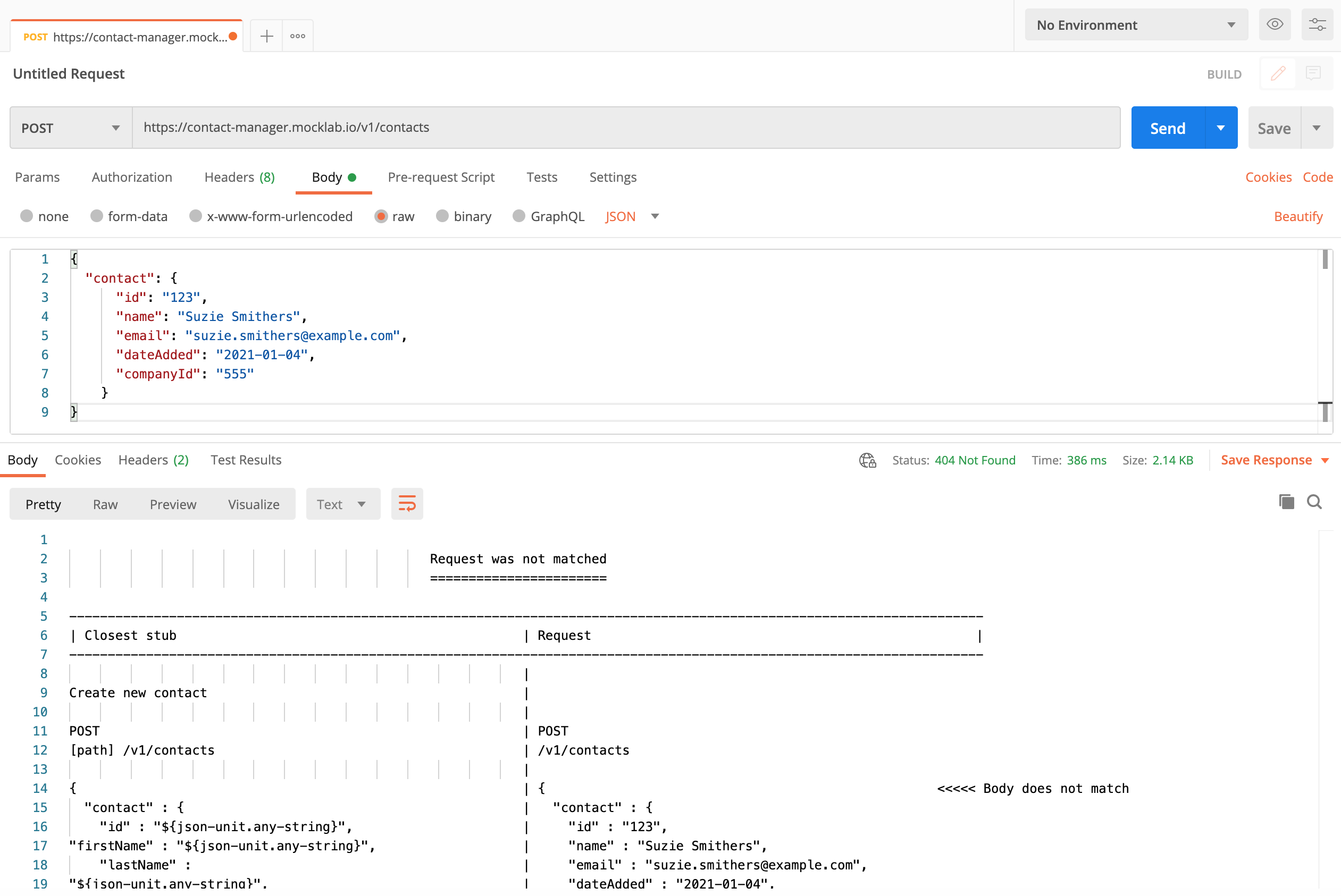

Now if we make a request containing an incorrect JSON field (name instead of firstName and lastName), we’ll get a 404 Not Found response containing a diff report showing which part of the request didn’t match:

​
Simulating state changes

When posting a new item of data to a real API we’d expect it to be stored and therefore returned on a subsequent GET request for the collection or the individual resource. However, mock APIs by default don’t store any state, so making a request to add a new contact will have no effect on the data returned later.

For most testing scenarios this isn’t an issue, but in cases where more realistic behaviour is required WireMock Cloud supports the concept of “stateful scenarios” whereby the state of a scenario can be used to determine which stub to match.

If we wanted to, for instance, create a test case in which posting a new company results in it appearing in the companies collection we can achieve this by creating three stubs, all associated with the same scenario.

Firstly, we’d stub the initial response for GET /v1/companies (in much the same manner as we did for contacts), returning a single company in the collection:

{
  "companies": [
    {
      "id": 123,
      "name": "Boring Corp"
    }
  ]
}

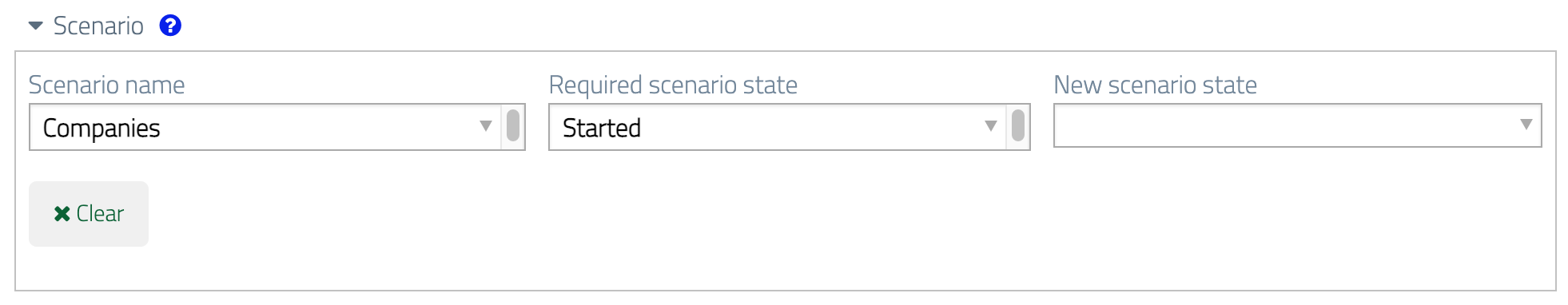

This time we’d put the stub in a scenario called “Companies” (the name is not important) and require that the scenario be in the “Started” state in order for the stub to match:

Next, we’d create a second GET stub cloned from the first but with a second company added to the collection:

{
  "companies": [
    {
      "id": 123,
      "name": "Boring Corp"
    },
    {
      "id": 234,
      "name": "Az Tech"
    }
  ]
}

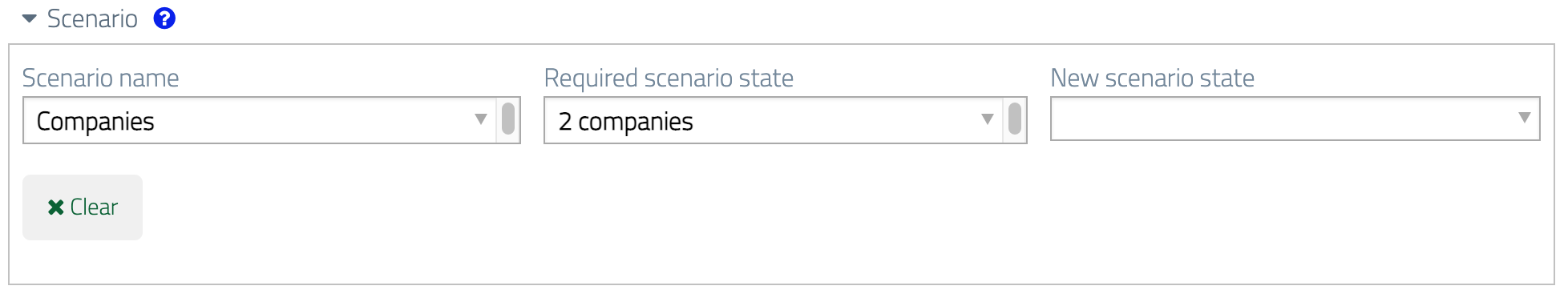

This stub would also be in the “Companies” scenario but this time with a different required state:

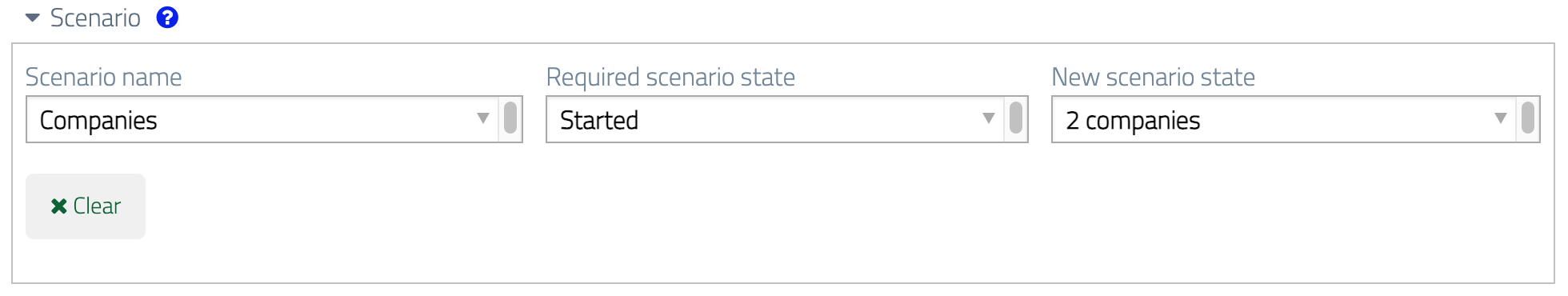

Finally, we’d configure the stub that handles the POST to advance the state of the scenario so that it appears to have the effect of storing the new company:

​
Testing the scenario

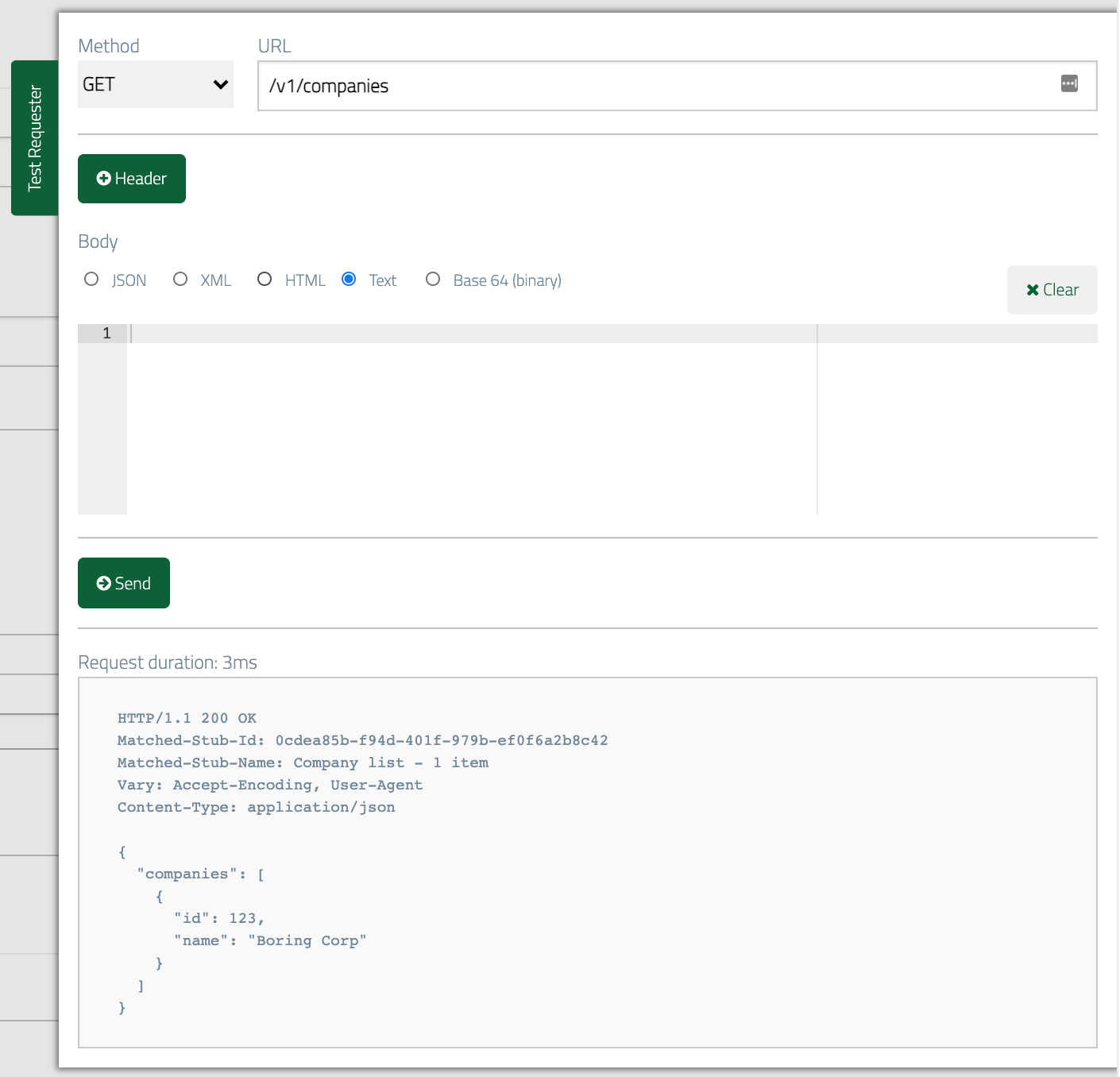

The first time we make a request to GET our companies we should see a single item in the collection:

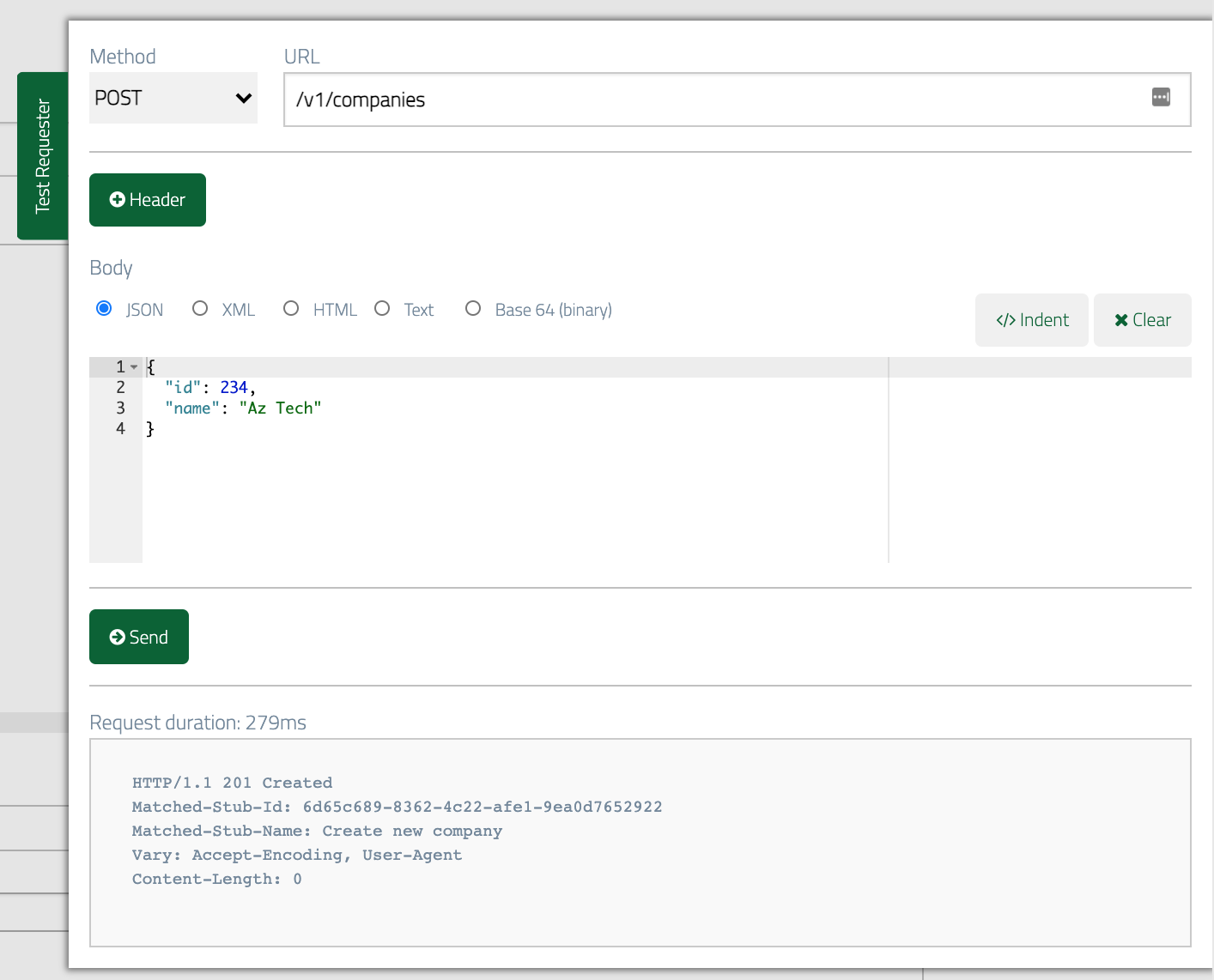

Then we POST a new company:

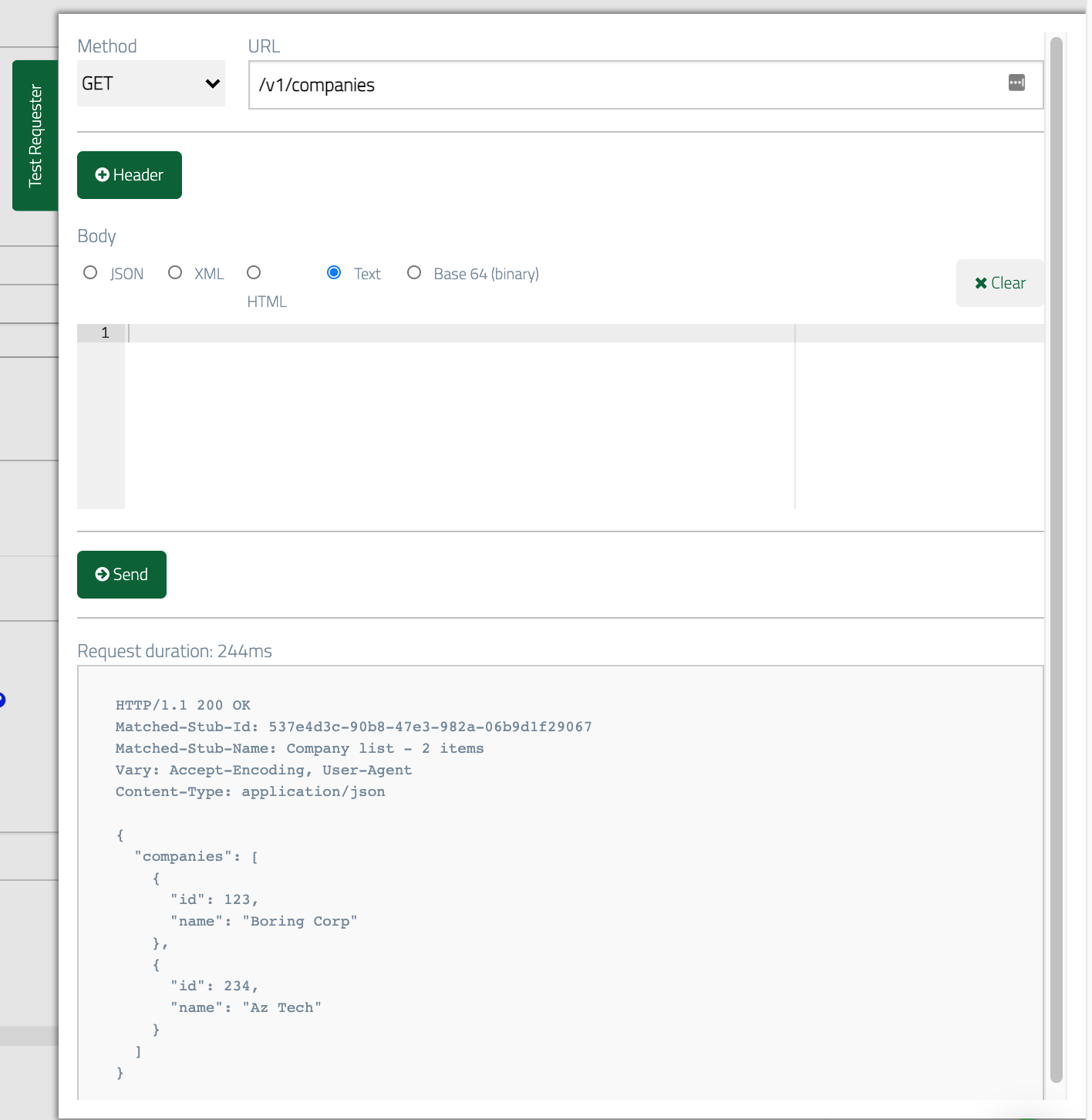

Then when we fetch the companies list a second time we should see two companies returned:

The scenario will now remain in state “2 companies” until it is manually reset, which you can do by clicking Reset All Scenarios, which resets all scenarios to “Started”.

You can find out more about Scenarios here.

​
Returning errors for specific requests

Sometimes we want to be able to support negative tests, for instance when the API we’re calling returns an error rather than the expected response. We can configure our mock API to return errors in response to specific requests with the help of the priority stub parameter.

Let’s suppose we want to test the case where our app tries to post a new contact but the API returns a 503 Service Unavailable response instead of the expected 201. If we configure a stub that expects specific data in the request body and give it a higher priority than the existing POST stub that returns 201 then we can send a request with appropriate data and see the error returned.

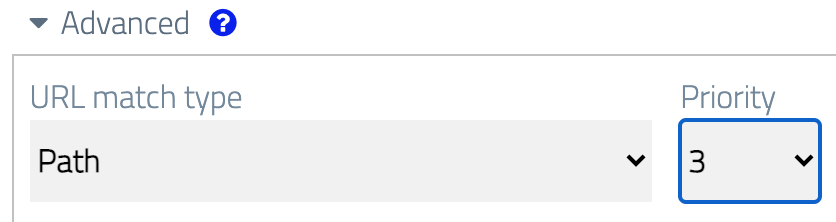

Start by cloning the existing POST stub for new contacts. Change the Priority value to a number lower than 5 (1 is highest).

Then we’ll modify the body matcher so that it’ll only match when a specific piece of data is sent. One option here would be to substitute the placeholders in the equalToJson body match we already have and this would work fine if we were confident our test could produce exactly the same values each time. However, we can give ourselves a bit more flexibility by choosing one specific bit of data and matching it using matchesJsonPath.

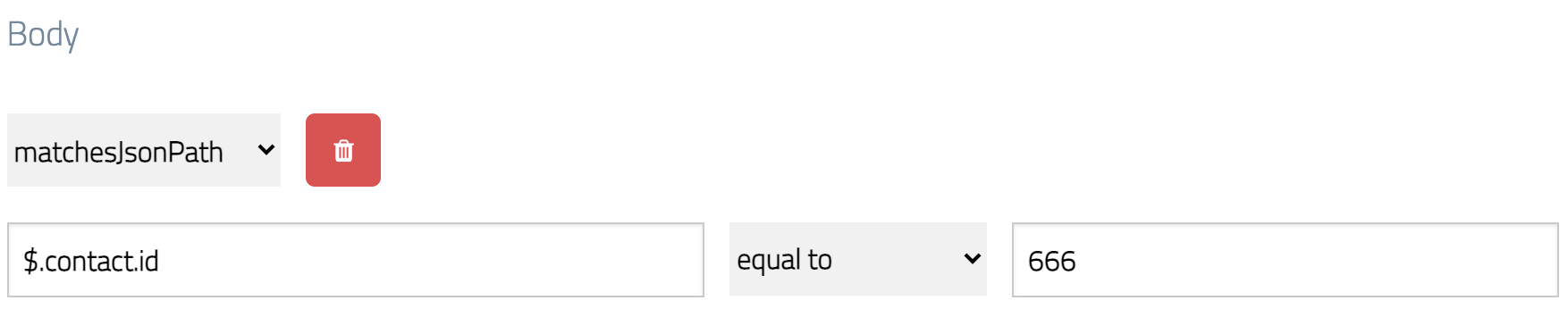

Let’s say that if we receive a specific contact ID then we’ll trigger the error. To do this, change the body match type to matchesJsonPath and the expression to $.contact.id equalTo 666:

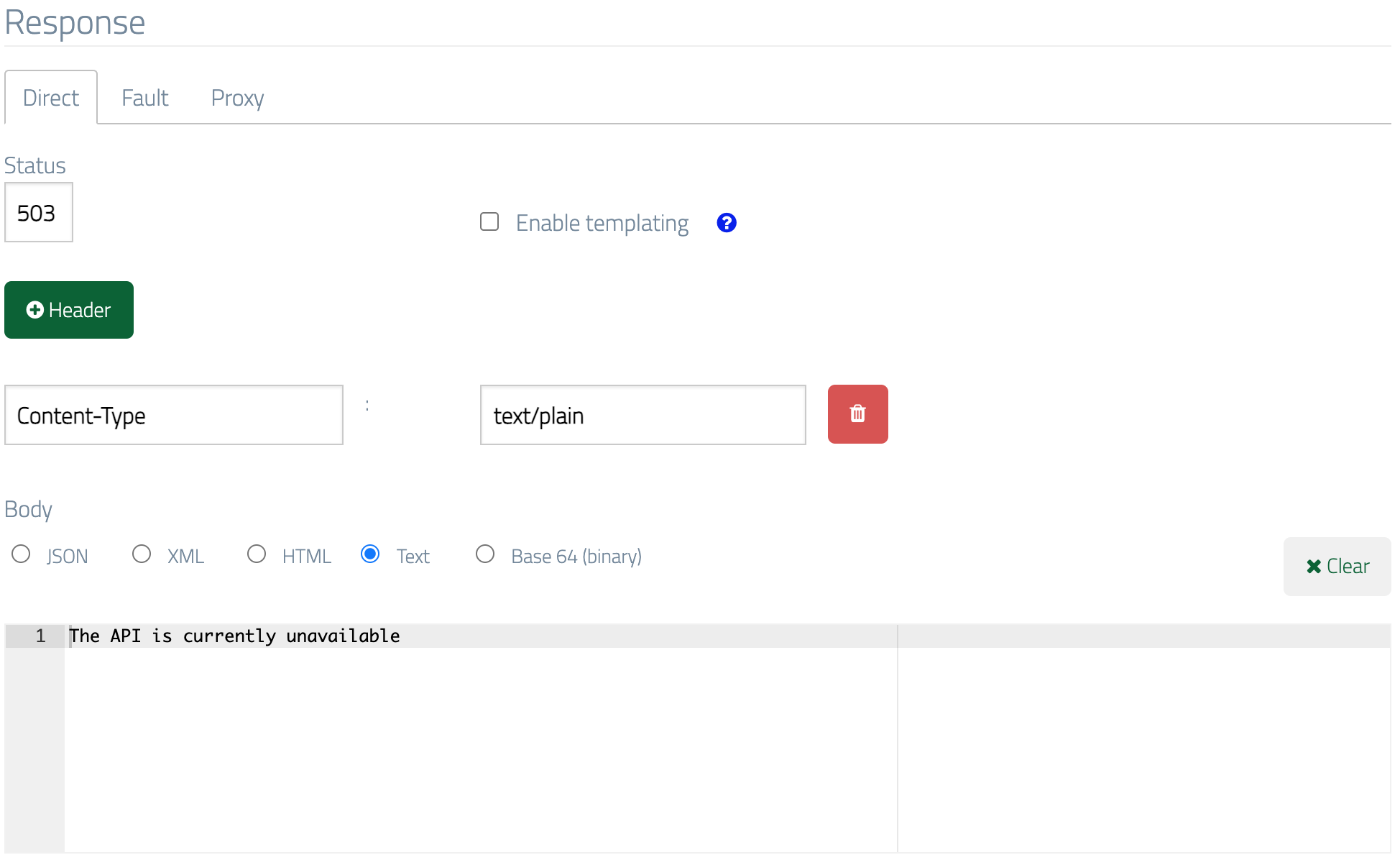

Finally, change the response status code to 503, and let’s also add a plain text error message supported by a Content-Type: text/plain header:

​
Testing the error response

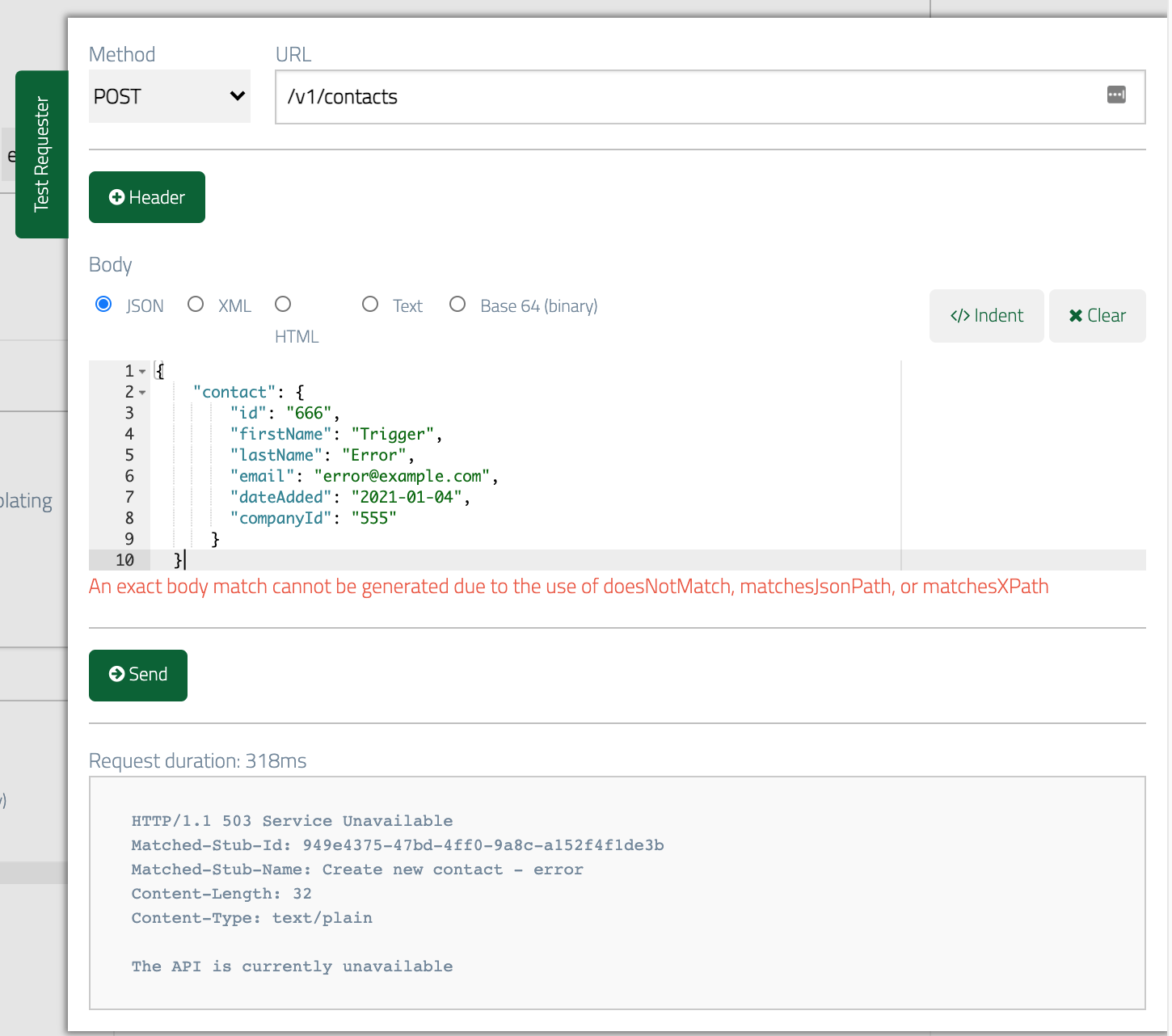

Now we can send a test request and see the error response returned:

note

The message in the red text in this case indicates that WireMock Cloud couldn’t automatically generate a valid request body to match our JSONPath expression. This can be safely ignored as we’ve created our own request body.

​
Other types of error

You can also simulate lower-level errors with WireMock Cloud such as dropped network connections and delays. You can learn more about faults here.

​
Conclusion

You’ve now built a mock of a REST API which can be used in a variety of testing scenarios, and it hopefully it’s possible to see how this approach could be applied to mocking your own APIs or those of your suppliers and partners.

You could also try expanding the scope of the API by mocking more resources and test more negative cases using faults, delays and other not-OK HTTP status codes.
