When stubbing API functions that accept JSON request bodies we may want to return different responses based on the JSON sent. WireMock Cloud provides two match types to supports this case - equalToJson and matchesJsonPath, which are described in detail in this article.

​
Matching via JSON equality

The equalToJson match operator performs a semantic comparison of the input JSON against the expected JSON. This has a number of advantages over a straight string comparison:

  • Ignores differences in whitespace
  • Can be configured to ignore differences in array order
  • Can be configured to ignore extra object attributes
  • Supports placeholders so that specific attributes can be excluded from the comparison

By default equalToJson will match only if all of the elements in the input JSON are the same as the expected JSON, arrays are in the same order and no additional attributes are present.

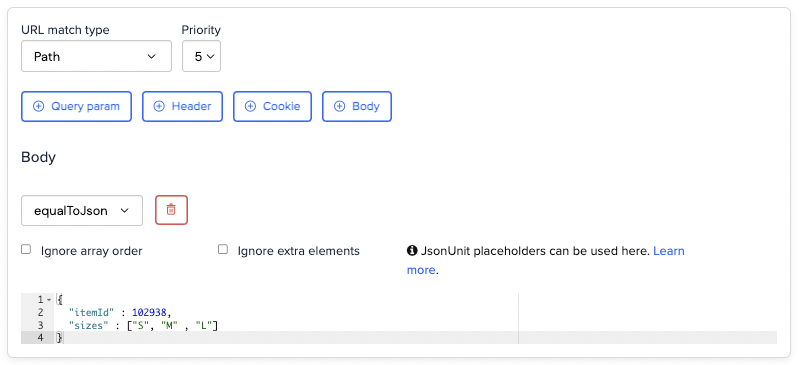

For instance, given an expected JSON document like

You would need to send in the request body for the stub to match exactly that JSON in order for the stub to be matched:

$ curl https://example.wiremockapi.cloud/json -d '{
  "itemId": 102938,
  "sizes": ["S", "M", "L"]
}'

{ "result": "OK" }

Changing the sizes order would cause a non-match:

$ curl https://example.wiremockapi.cloud/json -d '{
  "itemId": 102938,
  "sizes": ["L", "M", "S"]
}'

                                               Request was not matched
                                               =======================

-----------------------------------------------------------------------------------------------------------------------
| Closest stub                                             | Request                                                  |
-----------------------------------------------------------------------------------------------------------------------
                                                           |
JSON body matching                                         |
                                                           |
POST                                                       | POST
/json                                                      | /json
                                                           |
{                                                          | {                                                   <<<<< Body does not match
  "itemId" : 102938,                                       |   "itemId" : 102938,
  "sizes" : [ "S", "M", "L" ]                              |   "sizes" : [ "L", "M", "S" ]
}                                                          | }
                                                           |
-----------------------------------------------------------------------------------------------------------------------

Adding an extra attribute would also cause a non-match:

$ curl https://example.wiremockapi.cloud/json -d '{
  "itemId": 102938,
  "sizes": ["S", "M", "L"],
  "tag": "essentials"
}'

                                               Request was not matched
                                               =======================

-----------------------------------------------------------------------------------------------------------------------
| Closest stub                                             | Request                                                  |
-----------------------------------------------------------------------------------------------------------------------
                                                           |
JSON body matching                                         |
                                                           |
POST                                                       | POST
/json                                                      | /json
                                                           |
{                                                          | {                                                   <<<<< Body does not match
  "itemId" : 102938,                                       |   "itemId" : 102938,
  "sizes" : [ "S", "M", "L" ]                              |   "sizes" : [ "S", "M", "L" ],
}                                                          |   "tag" : "essentials"
                                                           | }
                                                           |
-----------------------------------------------------------------------------------------------------------------------

​
Ignoring array order

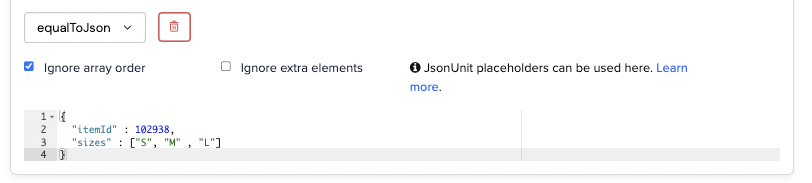

Sometimes the order of elements in an array is unimportant and can change arbitrarily between multiple requests. In this case it’s undesirable for your stub match to fail due to array order, so to remedy this you can simply tick “Ignore array order”.

This will allow requests like the following to succeed:

$ curl https://example.wiremockapi.cloud/json -d '{
  "itemId": 102938,
  "sizes": ["S", "L", "M"]
}'

{ "result": "OK" }

​
Ignoring extra elements

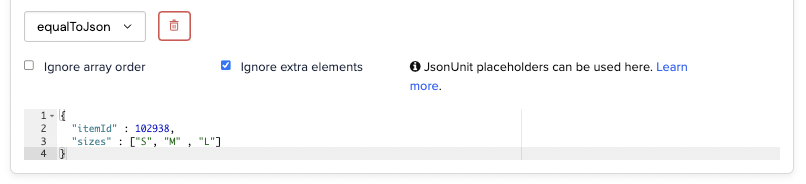

If you’re only interested in matching a specific set of JSON elements and don’t mind if additional elements are present you can tick “Ignore extra elements”.

This would permit the following to match:

$ curl https://example.wiremockapi.cloud/json -d '{
  "itemId": 102938,
  "sizes": ["S", "M", "L"],
  "tag": "essentials"
}'

​
Using placeholders to ignore specific JSON attributes

If you want to check that an element is present, but don’t care what the value is then you can use JSONUnit placeholder syntax to achieve this.

Note: unlike with XML placeholders this is enabled by default.

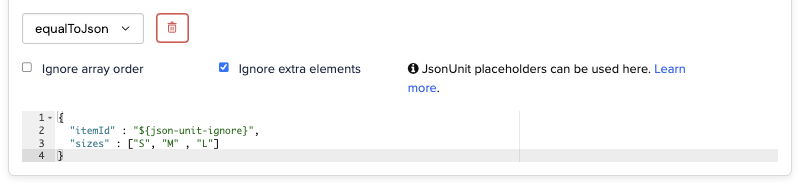

For instance, given the following configuration:

This would permit the the following to match:

$ curl https://example.wiremockapi.cloud/json -d '{
  "itemId": 8888888888,
  "sizes": ["S", "M", "L"],
  "tag": "essentials"
}'

When using ${json-unit.ignore}, the element’s type is also ignored (in addition to its value), so in the above case a string, boolean etc. could have been used in place of the numeric ID.

If you want to constrain an element to a specific type but still ignore the value you can use one of the following placeholders:

  • ${json-unit.regex}[A-Z]+ (any Java-style regular expression can be used)
  • ${json-unit.any-string}
  • ${json-unit.any-boolean}
  • ${json-unit.any-number}

​
Matching via JSONPath - matchesJsonPath

JSONPath is an expression language, similar in concept to XPath that permits elements or collections of elements to be queried from a JSON document.

WireMock Cloud supports stub matching using JSONPath expressions, optionally sub-matching the result using WireMock Cloud’s own operators (equalTo, matches etc.).

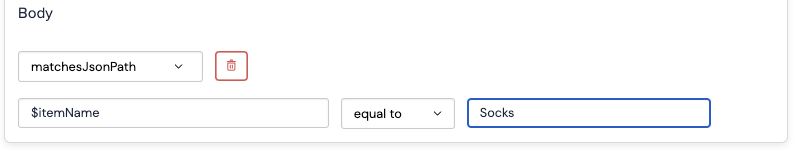

Given the following configration:

The following JSON will be matched:

$ curl https://example.wiremockapi.cloud/json -d '{
  "itemId": 102938,
  "itemName": "Socks"
}'

​
Expression only vs. expression + sub-match

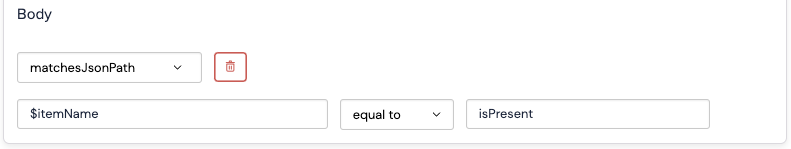

It is possible to match a JSON document without a sub-match by selecting “is present” from the drop-down:

If you do this, the JSON input will be considered a match if the expression returns 1 or more elements.

This feature is primarily present for compatibility with WireMock projects, and generally it is better to use sub-matches as this results in simpler JSONPath expressions and more useful debug output when there is a non-match.

​
Common JSONPath examples

Matching on a specific array element by position.

$.sizes[1] equal to M

would match:

{
  "sizes": ["S", "M", "L"]
}

Matching on an element of an object found via another element.

$.addresses[?(@.type == 'business')].postcode contains N11NN

would match:

{
  "addresses": [
    {
      "type": "home",
      "postcode": "Z55ZZ"
    },
    {
      "type": "business",
      "postcode": "N11NN"
    }
  ]
}

It is necessary to use contains in this instance as a JSONPath expression containing a query part (between the [? and ]) will always return a collection of results.

Matching an element found recursively.

$..postcode contains N11NN

would match:

{
  "addresses": [
    {
      "type": "home",
      "postcode": "Z55ZZ"
    },
    {
      "type": "business",
      "postcode": "N11NN"
    }
  ]
}

and would also match:

{
  "address": {
    "type": "business",
    "postcode": "N11NN"
  }
}
